Description

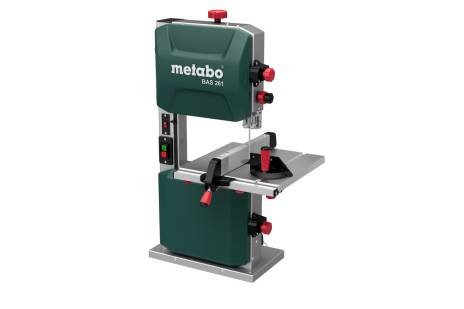

BAS 261 Precision (619008190) Band saw
| Specification | Value |
|---|---|
| Cutting Height | 103 mm / 4 1/16 “ |
| Passage Width | 245 mm / 9 21/32 “ |
| Rated Input Power | 400 W |
- High precision and stability for highest cutting quality
- Quiet belt path thanks to balanced flywheels with rubber coating
- Top and bottom HSS precision three-roller guide of the band saw blade for accurate cutting results, adjustable without tools
- Precise rip fence with double clamping and quick fastening
- Quiet induction motor, maintenance-free and robust.
- Restart protection: prevents unintentional start-up after power supply interruption
- Swivelling grey cast iron saw table for inclined cuts
- Door opening without tools for easy saw blade change
- Tool-less height adjustment of the saw blade guard
- LED work light for illumination of the cutting line
- External extraction possible for low-dust working
- Radius cutting with circle sawing attachment (accessory)
| Characteristic | Value |
|---|---|
| Dimensions | 530 x 470 x 840 mm // 20 7/8 x 18 1/2 x 33 1/16 “ |
| Support Surface | 328 x 335 mm // 12 29/32 x 13 3/16 “ |
| Working Height without Stand | 375 mm / 14 3/4 “ |
| Sawing Bench Swivel Range | 0 – 45 ° |
| Cutting Height | 103 mm / 4 1/16 “ |
| Passage Width | 245 mm / 9 21/32 “ |
| Cutting Speed | 735 m/min |
| Saw Belt Length | 1712 mm / 67 13/32 “ |
| Mains Voltage | 220 – 240 V |
| Rated Input Power | 400 W |
| Output Power | 270 W |
| Weight | 32.5 kg / 71.7 lbs |
Scope of delivery BAS 261 :
- Universal band saw blade A6
- Suction adapter (for Ø 44, 58, 100 mm)
- Push stick
- Rip fence
- Mitre Fence
