Description

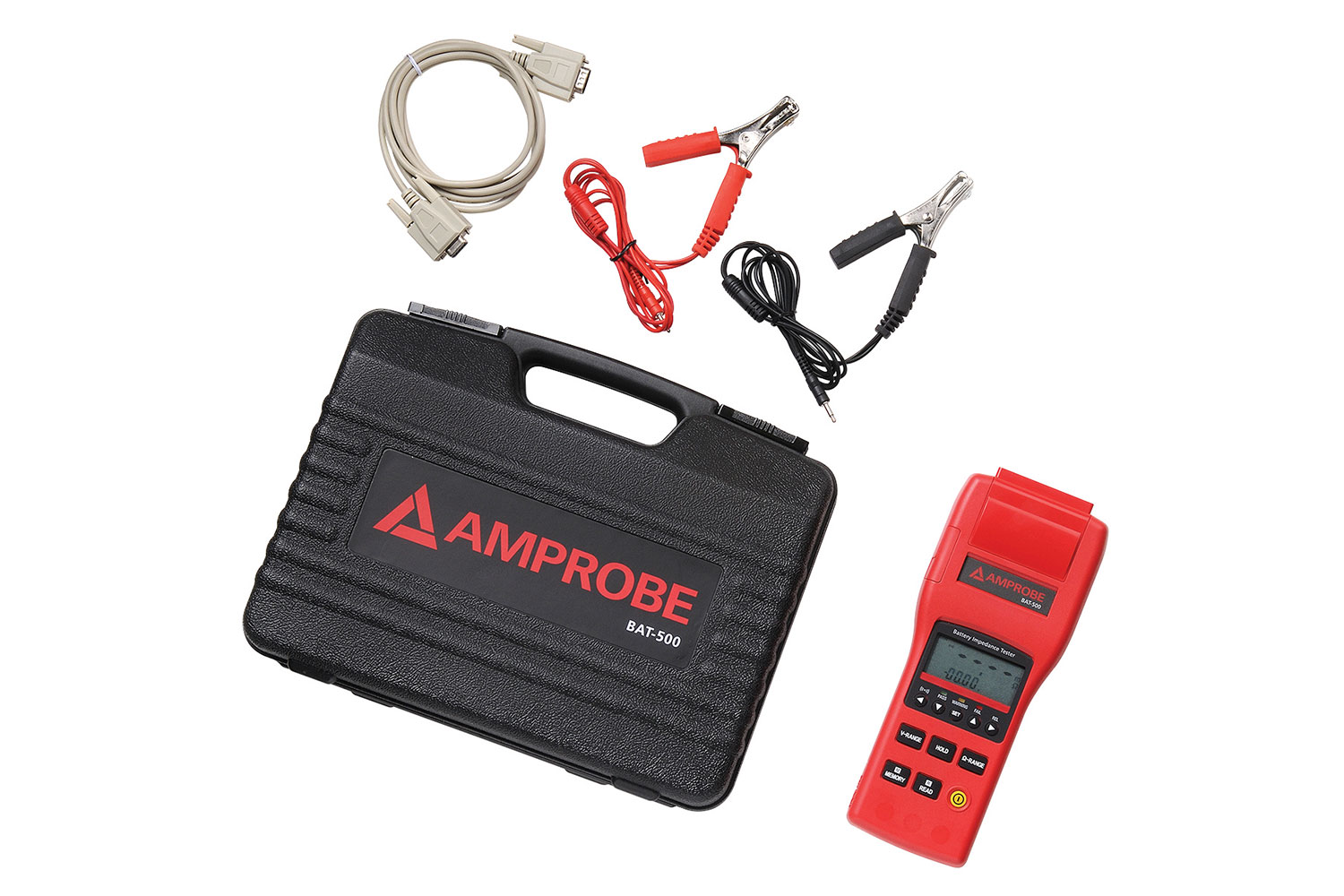

What’s Included
- BAT-500
- Batteries
- RS232C9 to USB bridge cable
- Software CD
- Kelvin clips
Key Features
- Tests battery Impedance to calculate its true life
- Works with most batteries, compact storage batteries, alkaline and lead-acid up to 500 Ah
- Resistance measurement up to 40 ohms, and voltage up to 40 V
- Tests are performed without shutting down a battery
- Simultaneously measure battery resistance and voltage
- Comparator function to quickly access conditions as pass, warning, or fail
- 99 memory locations to store results with read function
- Compact and lightweight
- RS232 PC interface to download testing results to a PC for trending/life cycle analysis
Specifications
| Features | BAT-500 |
| Maximum battery capacity | Up to 500 amp hours |
| Battery type | Alkaline, nickel-metal hydride (NiMH), nickel-cadmium (NiCd), lithium-ion (Li-ion) and lead-acid batteries |
| DC Voltage | 4.000 V, 40.00 V |
| Impedance | 40 mO, 400 mO, 4 O, 40 O |
| Data capture memory | 500 data sets |
| Data logging memory | 9600 data sets |
| Specifications | |
| Battery capacity | 0 to 500 AH |
| Resolution | 10 µO, 100 µO, 1 mO, 10 mO |
| Accuracy | ±(1%reading ±10digits) |
| Open circuit voltage | 3.5 V pp max |
| Measurement current | 25 mA approx., 2.5 mA approx., 250 µA approx., 25 µA approx |
| Measuring current frequency | 1 KHz ±10% |
| Voltage measurement range | 4 V, 40 V |
| Resolution | 1 mV, 10 mV |
| Accuracy | ±(0.1% rdg ±6 digits) |
