Description
Key features
- Non-contact voltage detection from 20 to 90 V AC
- On/off button with continuous self-test helps prolong battery life
- Fast, simple go/no-go voltage detection

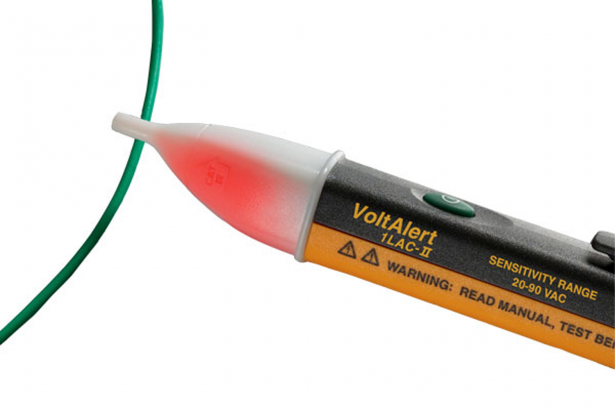

Specifications: Fluke 1LAC II A Non-Contact Voltage Tester
| Specifications | |
| Operating Principles | Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage. |
| Voltage sensing ranges | 20 V to 90 V control circuit model |
| Detector tip style | Round-tip |
| Light source | One high intensity red LED |
| Agency Approvals | c CSA us, CE, C-Tick |
| Safety Rating | 1000 V, CAT IV |
| Safety Compliance | Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2 |
| EMC Compliance | Meets IEC 61326-1:2006 |
| IP Rating | IP 40 |
| Operating Temperature | -10°C to 50°C (-14°F to 122°F) |
| Operating Humidity Ranges | 0% to 95% (0°C to 30°C) |
| 0% to 75% (30°C to 40°C) | |
| 0% to 45% (40 to 55°C) | |
| Operating Altitude | 3000 m |
| Cleaning | Clean with damp cloth |
| Batteries | 2 AAA alkaline batteries included |
| Battery Life | Typical battery life of greater than 1 year |
| Warranty Period | Two years |
| Product does not respond to random electrostatic discharge. | |
