Description
Key features

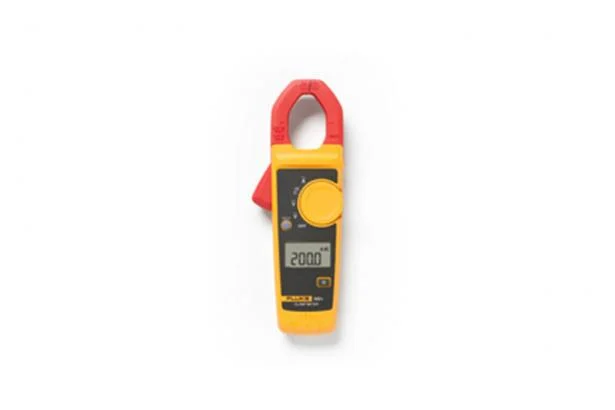

fluke 303 clamp meter:
- 600 A ac current measurement
- Cat IV 300V / CAT III 600V safety rated
- 30 mm jaw size for numerous applications
- Resistance range of 40 kΩ
- Slim, ergonomic design is easy to carry and simple to use
- Easy to read backlight display
Specifications: Fluke 303 Clamp Meter
| Technical Specifications | ||
| AC current | Range | 600.0A |
| Accuracy | 1.8% ±5 | |
| AC voltage | Range | 400/600 |
| Accuracy | 1.5% ±5 | |
| DC voltage | Range | 400/600 |
| Accuracy | 1.5% ±5 | |
| DC mV range | – | |
| Resistance | Range | 4000 Ω |
| Accuracy | 1% ±5 | |
| Continuity | ≤ 70 Ω | |
| Backlight display | Yes | |
| Data hold | Yes | |
| Size | H x W x D (mm) | 208 x 58.5 x 28 |
| Jaw size | 30 mm | |
| Safety rating | CAT III 600 V | |
| Temperature | 0 ~ 40 °C | |
| Screen refresh rate | > 2 times / sec. | |
| Test leads | TL75 | |
| Battery | 2 AA batteries | |
| Warranty | 2 years | |
