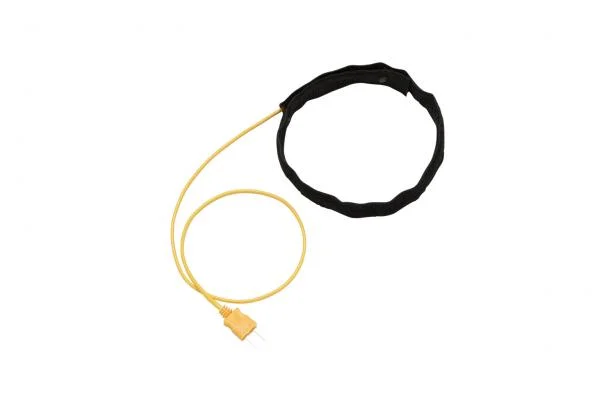

Fluke 80PK-11 Type-K Flexible Cuff Thermocouple Temperature Probe
Key features
- Designed for hands free measurement of HVAC temperature measuring applications
- Use multiple and leave in place for route based routine maintenance
- Use with any temperature-measuring instrument designed to accept Type-K thermocouples
Specifications:
| Specifications | ||
| Measurement range | -30°C to 150°C (-19.3°F to 302°F) | |
| Accuracy | ±1.5°C (±2.7°F) | |
| Measurement time (time constant) | 10 seconds | |
| Maximum voltage | 24 V AC rms or 60 V DC maximum for proper safe operation. | |
| Maximum temperature | 150°C (302°F) | |
| Cable | Total length | 1 m (40 in), 0.97 m (38 in) lead wire, 49.5 cm (19.5 in) fabric hook-and-loop fastener cuff |
| Insulation material | Hytrel | |
| Width of attachment material | 2.5 cm (1 in) | |
| Min usable pipe diameter | 3.8 cm (1.5 in) | |
| Max. usable pipe diameter | 14 cm (5.5 in) | |
| Connector | Type | Yellow mini-thermocouple with 0.500 in pin |
| Material | Hytrel 4774 | |
| Maximum temperature | 200°C (392°F) | |
