Description
Key features
- Companion to your scopemeter, power quality meter or digital multimeter to measure up to 200 A AC
- Included adapter for DMM’s
- Two ranges: 20 A & 200A, 10 or 100 mV/ Amp output
- Take accurate current readings without breaking the circuit
- Max. conductor Ø 20 mm
- CAT III 600V safety rating

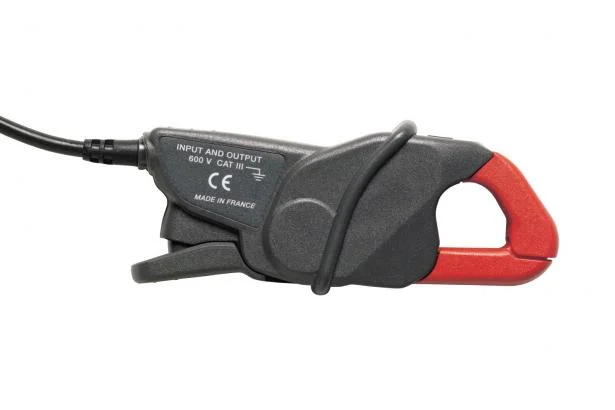

Specifications: Fluke i200s AC Current Clamp
| Specifications | |
| Nominal current range | 20 A 200 A |
| Continuous current range | 0.1 A – 24 A 0.5 A – 200 A |
| Maximum non-destructive | 240 A |
| Lowest measurable current | 0.1 A |
| Basic accuracy | 1.5% + 0.5 A (48-65 Hz) (% reading + floorspec) |
| Useable frequency | 40 Hz – 10 kHz |
| Output level(s) | 100 mV/A 10mV/A |
| Safety Specifications | |
| Safety | CAT III, 600 V |
| Maximum voltage | 600 V AC |
| Mechanical and General Specifications | |
| Warranty | 1 year |
| Maximum conductor diameter | 20 mm |
| Maximum conductor size (busbar) | 20 x 5 mm |
| Output cable length | 2 m |
| BNC Adapter | Yes |
| BNC to banana adapter included |
Yes |
