Description

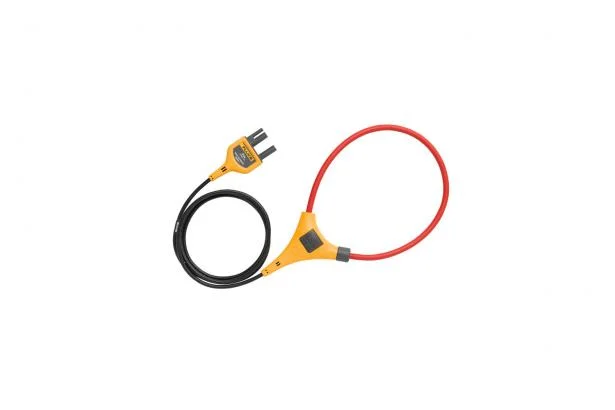

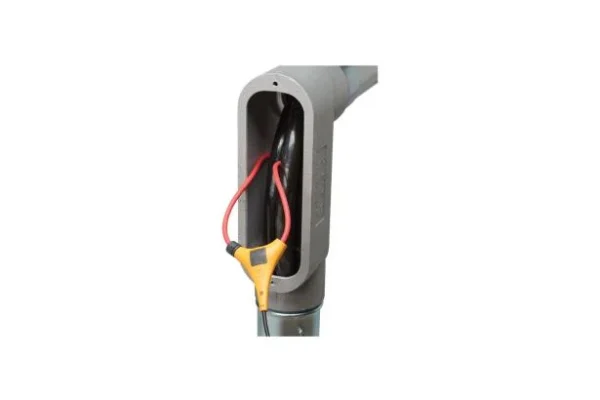

The Fluke iFlex® flexible current probes expand the measurement range of the select Fluke meters to 2500 A AC while providing the ultimate measurement flexibility. The iFlex® probes connect directly to the meter, displaying current measurements without error prone scaling factors. The 1.8 m (6 ft) cord allows separation between the measurement location and the clamp meter making it easier to view the display. The large loop size and thin cross section allow measurement of awkward sized conductors and improved wire access in crowded spaces. Available in 25 cm (10 in) and 45 cm (18 in) sizes.
Specifications: Fluke i2500-18 iFlex® Flexible Current Probes
| Specifications | |||
| Range | Resolution | Accuracy | |
| AC Current1 | 2500 A | 0.1 A | 3% ± 5 digits2 |
| Frequency1 | 500 Hz | 0.1 Hz | 0.5% ± 5 digits |
| External magnetic field rejection (with cable >10 cm from the coupling) |
40 dB | ||
| Inrush1 | • | ||
| Safety rating | CAT III 1000 V, CAT IV 600 V | ||
| 1. When used with compatible Fluke meter. Accuracy stated includes probe and meter accuracy. 2. For position accuracy at non-optimum positions, see Position sensitivity specifications table “A” |
|||
| Position Sensitivity Specifications | |||
| Distance from Optimum | i2500-18 | Additional iFlex® Error | |
| A | 1.4 in (35.6 mm) | ±0.5% | |
| B | 2.0 in (50.8 mm) | ±1.0% | |
| C | 2.5 in (63.5 mm) | ±2.0% | |
