Description

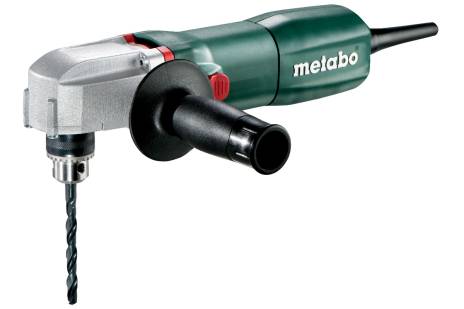

WBE 700 (600512000) Angle Drill
- Powerful angle drill for drilling in difficult to access areas
- Robust die cast aluminium gear housing for optimum heat dissipation and durability
- Vario-Constamatic (VC)- Electronics for work with materials requiring customised speeds, which remain almost constant under load
- Thumbwheel for speed preselection
| Characteristics | |
|---|---|
| Rated input power | 700 W |
| Output power | 305 W |
| Drill Ø steel | 10 mm // 3/8 “ |
| Drill-Ø soft wood | 25 mm // 1 “ |
| No-load speed | 850 – 2600 rpm |
| Speed at rated load | 2300 rpm |
| Gears | 1 |
| Maximum torque | 8 Nm // 71 in-lbs |
| Chuck capacity | 1 – 10 mm // 1/32 – 3/8 “ |
| Drill spindle thread | 1/2 ” – 20 UNF |
| Weight (without power cable) | 2 kg / 4.4 lbs |
| Cable length | 4 m / 13 ft |
| Vibration | |
| Drilling in metal | 2.5 m/s² |
| Uncertainty of measurement K | 1.5 m/s² |
| Noise emission | |
| Sound pressure level | 87 dB(A) |
| Sound power level (LwA) | 98 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
Scope of Delivery W 700 :
- Geared chuck
- Chuck key
- Side handle
