BOSCH GBH 4-32 DFR Professional Rotary Hammer - SDS Plus | 900 W | SDS Plus Tool Holder | Rated Speed 0-800 RPM | Impact Rate 0-3600 BPM | Impact energy 4.2 J| with Vibration Control | 1 Yr Warranty
Spare parts for this tool
Key facts
- Brand
- Bosch
- Model
- GBH 4-32 DFR
- Returns
- Not returnable — replacement if damaged or defective
- Payment
- UPI, cards or net banking, bank transfer
Authorised Bosch dealer Secure checkout GST invoice
4.3 / 5923 buyer ratings TrustSEALIndiaMART verified GSTRegistered business
| Features | |
|---|---|
| Model No | GBH 4-32 DFR |
| Item Weight | 7.2kg |
| Colour | Blue |
| Maximum Rotational Speed | 760 RPM |
| Power Source | Electric |
Specifications
| Item Weight | 7.2kg |
| Colour | Blue |
| Maximum Rotational Speed | 760 RPM |
| Power Source | Electric |
| Country of Origin | China |
| Type of Product | Hammer Drill |
| Voltage | 900v |
| Name of Manufacturer | Bosch Power ToolS pvt ltd; |
| Drilling Capacity Wood | 68 Millimetres |
| Drilling Capacity Metal | 68 Millimetres |
| Part Number | 06113321F0 |
| HSN code | 84672900 |
| GST rate | 18% |
Description

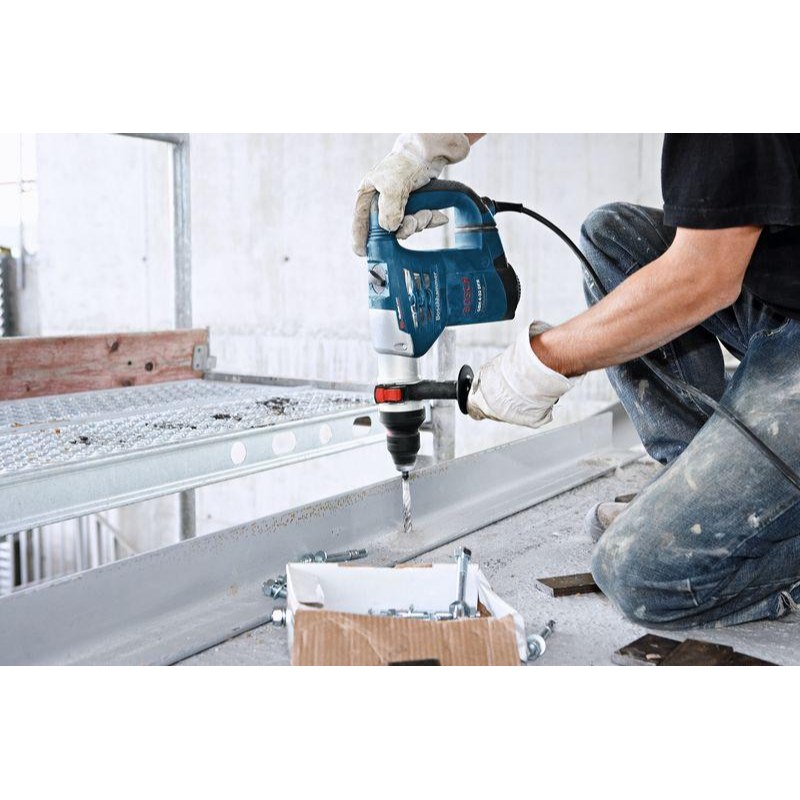

The Bosch GBH 4-32 DFR is a rotary hammer for drilling and chiselling in concrete and masonry. It runs on 220–230 V mains power. Where it is used • Building and civil contractors: anchor holes in RCC, slabs and beams • Electrical, HVAC and fire-fighting installers: conduit, tray and pipe supports • Interior and renovation work: chasing and removing tiles (chisel mode) • Steel-structure and façade fixing: chemical and mechanical anchors Key specifications • Item Weight: 7.2kg • Maximum Rotational Speed: 760 RPM • Voltage: 900v • Drilling Capacity Wood: 68 Millimetres • Drilling Capacity Metal: 68 Millimetres Which model should you choose? SDS-plus hammers (2–4 kg) suit holes up to about 26–32 mm; SDS-max hammers (5 kg and above) are for larger holes, core bits and heavy chiselling. Use the matching SDS bits. Genuine Bosch, sold by Vatsa Enterprises with a GST invoice.
Shipping & returns
- Dispatch
- Next working day: this item is in stock.
- Delivery
- Tracked courier across India, usually 3–5 working days after dispatch. Free above ₹500, ₹99 below.
- Returns
- Not returnable — replaced if it arrives damaged, defective or wrong.
- Invoice
- GST invoice with every order; add your GST number at checkout to claim input tax credit.
Questions about this product
What is the impact energy of the Bosch GBH 4-32 DFR?
The GBH 4-32 DFR Professional delivers 4.2 J impact energy from a 900 W motor. Rated speed is 0 – 800 rpm and impact rate 0 – 3,600 bpm; weight is 4.7 kg.
What concrete drilling range does the GBH 4-32 DFR cover?
Bosch states 6 – 32 mm in concrete with hammer drill bits (optimum 14 – 25 mm) and 25 mm with core cutters.
Does the GBH 4-32 DFR have a quick-change chuck?

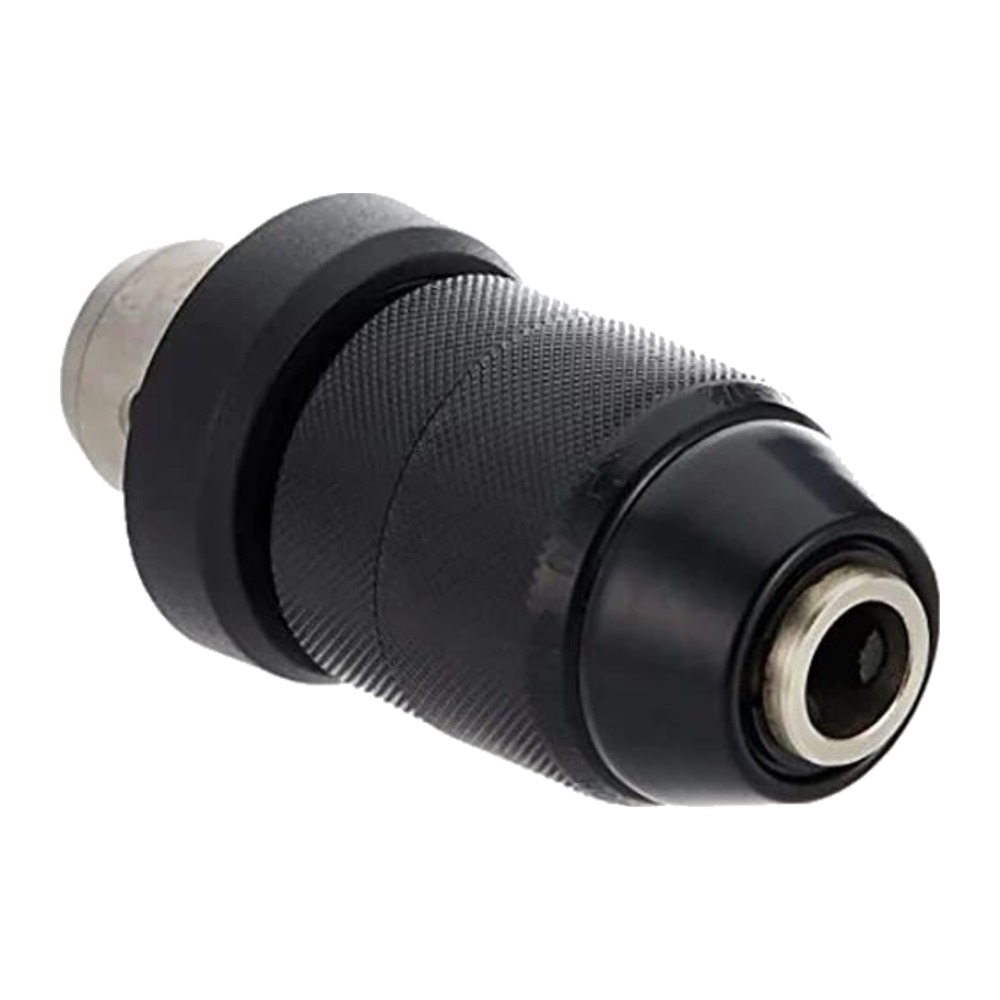

Yes. Bosch states it features a keyless and quick-change chuck, plus Reverse Mode, Rotation Control Clutch, Variable Speed, Vario-Lock and Vibration Control. An SDS plus quick-change chuck (2 608 572 213) is included in variant 0 611 332 1F0.
What comes in the box with the GBH 4-32 DFR?
Bosch lists variant 0 611 332 1F0 with a 310 mm depth stop (1 613 001 003), carrying case (2 605 438 651), auxiliary handle (2 602 025 176) and SDS plus quick-change chuck (2 608 572 213).
Is this a genuine Bosch product? What about warranty?
Yes, 100% genuine. Vatsa Enterprises is an authorised Bosch dealer. It carries Bosch India's manufacturer warranty against manufacturing defects, serviced at Bosch authorised service centres across India — keep your GST invoice for any claim. We help you with the claim on WhatsApp.
When will my order be dispatched and delivered?
This item is in stock and dispatches the next working day. Tracked courier delivery across India usually takes 3–5 working days after dispatch. Delivery is free on this item.
Is cash on delivery available? What payment options do you accept?
Cash on delivery is available only on orders up to ₹10,000, so for this item please pay by UPI, credit/debit card, net banking or bank transfer.
Will I get a GST invoice?
Yes, every order comes with a GST invoice from Vatsa Enterprises (HSN 84672900, GST 18%). Add your GST number at checkout to claim input tax credit.
Can I return it?
This item is not returnable, but if it arrives damaged, defective or wrong, we replace it. Please share an unboxing photo or video on WhatsApp within 48 hours of delivery.
Do you offer a better price for bulk quantity?
Yes. For bulk or project quantities, tap "Request a quote" on this page or message us on WhatsApp (+91 63965 76830) for a special rate and delivery timeline.
