Insize 2330-300 Large Range Bore Gauge 180-300mm

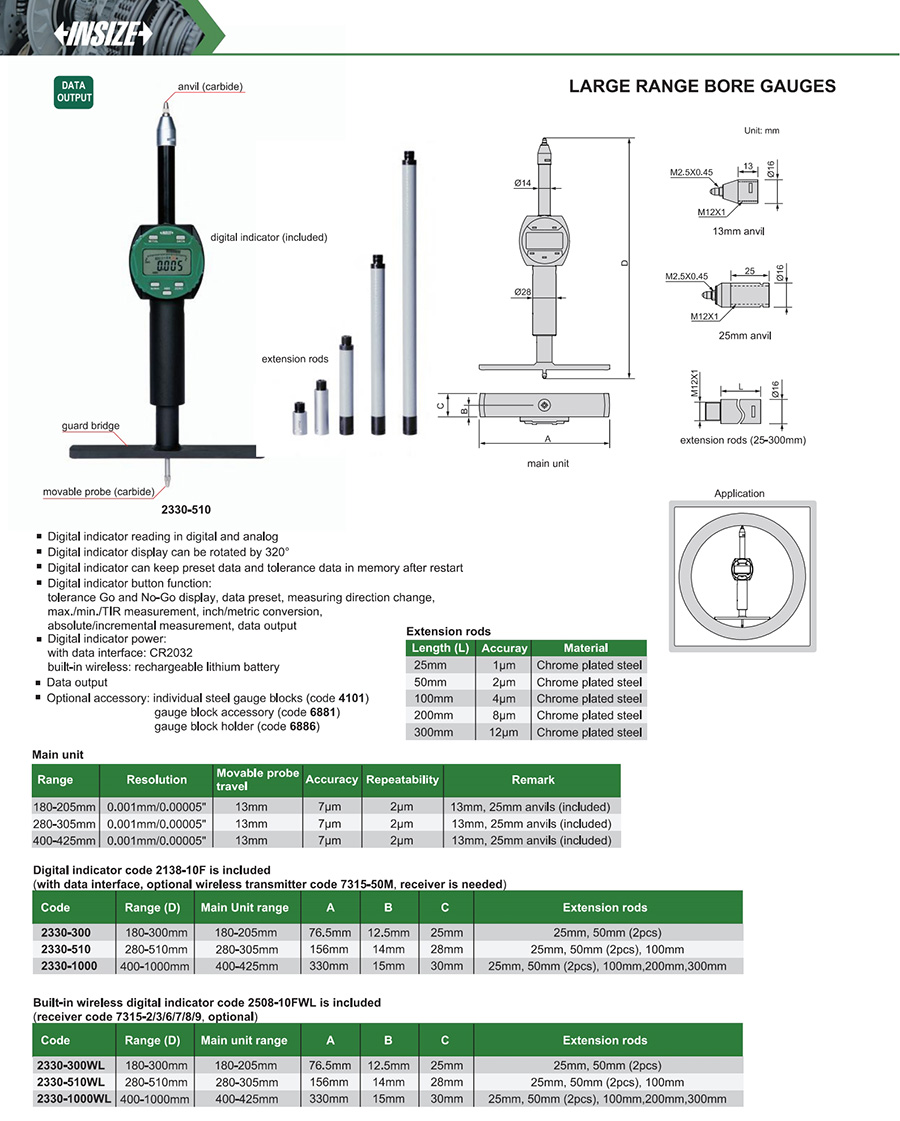

Insize 2330-300 Large Range Bore Gauge 180-300mm. The INSIZE 2330-300 is a large-range bore gauge with a built-in digital indicator, covering 180-300mm at 2µm repeatability, with a data interface for sending readings to a PC. The display reads in both digital and analog form and can be rotated 320°, and it keeps preset and tolerance data in memory even after the unit restarts. Buttons cover Go/No-Go tolerance display, data preset, measuring-direction change, max/min/TIR measurement, inch/metric conversion, absolute/incremental measurement and data output. Gauges of this size are used to check large bores, such as cylinder liners and bearing housings, that a standard bore gauge cannot reach.
₹73,782.00 inclusive of GST
Product specifications
- Type of Product
- LARGE RANGE BORE GAUGES
- Model No
- 2330-300
- Brand
- Insize
