INSIZE 3287-25B Groove Micrometer 0-25mm

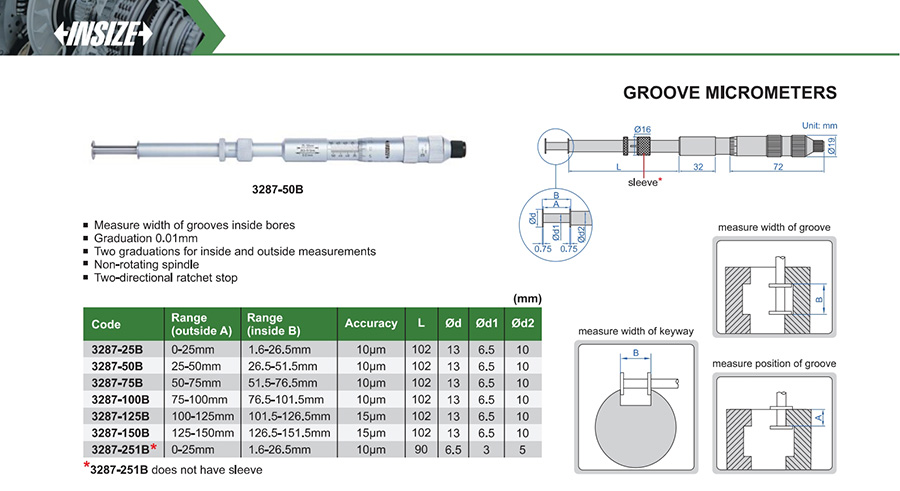

INSIZE 3287-25B Groove Micrometer 0-25mm. The INSIZE 3287-25B groove micrometer is built to measure the width of grooves cut inside bores, plus the position of a groove and the width of a keyway. It reads grooves 0-25mm wide on its outside scale and, using a second scale, checks positions from 1.6-26.5mm inside a bore. INSIZE gives it 0.01mm graduation, a non-rotating spindle, and a two-directional ratchet stop for even measuring pressure whichever way the instrument is turned, useful when a groove has to be checked while approaching it from either side.
₹34,441.13 inclusive of GST
Product specifications
- Display Type
- Analog
- Type of Product
- GROOVE MICROMETERS
- Model No
- 3287-25B
- Brand
- Insize
