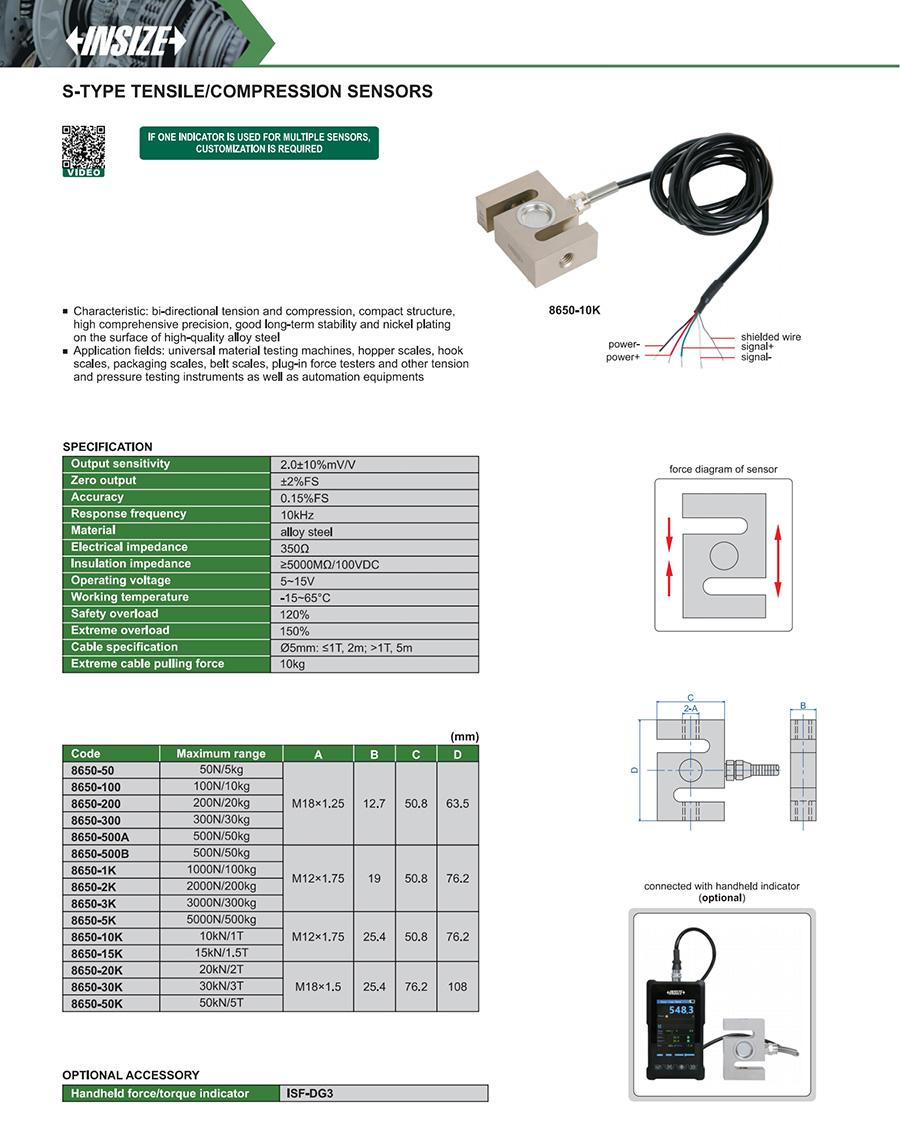

INSIZE 8650-20K S-Type Tensile/Compression Sensor 20 kN/2 T

With a maximum range of 20 kN/2 T, the INSIZE 8650-20K S-type sensor measures both tension and compression in a compact, nickel-plated alloy steel body, which INSIZE credits with high comprehensive precision and good long-term stability. Typical uses include universal material testing machines, hopper scales, hook scales, packaging and belt scales, plug-in force testers, and other tension/pressure testing or automation equipment. It runs on DC5~15V, reads at 0.15% F.S. accuracy with 2.0±10% mV/V output sensitivity, works across -15~65°C, and takes overload to 120% (safety) and 150% (extreme).
