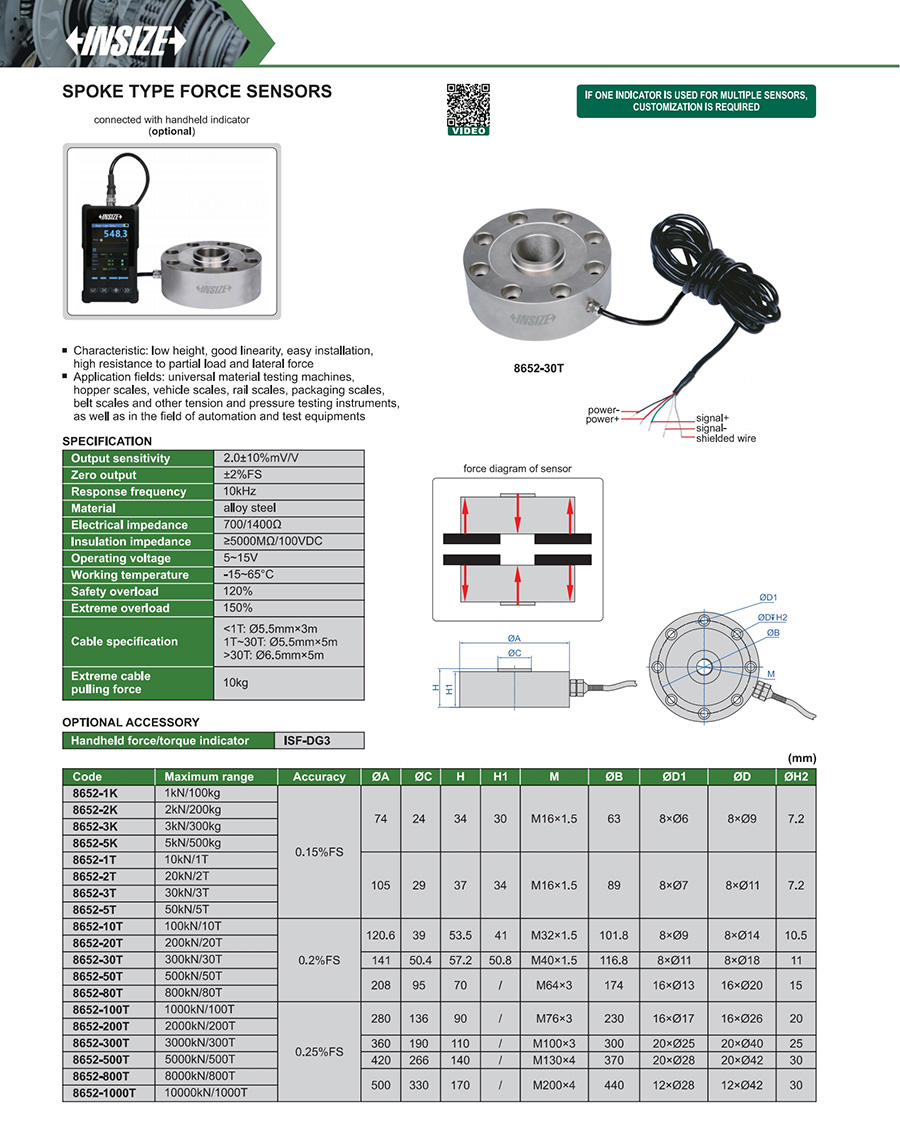

INSIZE 8652-800T Spoke Type Force Sensor 8000 kN/800 T

INSIZE's 8652-800T spoke-type force sensor covers a maximum range of 8000 kN/800 T, in a low-height alloy steel body that INSIZE states has good linearity and high resistance to partial load and lateral force. It suits universal material testing machines, hopper, vehicle, rail, belt and packaging scales, and other tension/pressure testing or automation equipment. Output sensitivity is 2.0±10% mV/V, accuracy is 0.25%F.S., response frequency is 10 kHz, working temperature spans -15~65°C, and overload protection runs to 120% (safety) and 150% (extreme).
