INSIZE ISF-TGP500 Double-Needle Dial Tension Gauge, 50-500gf

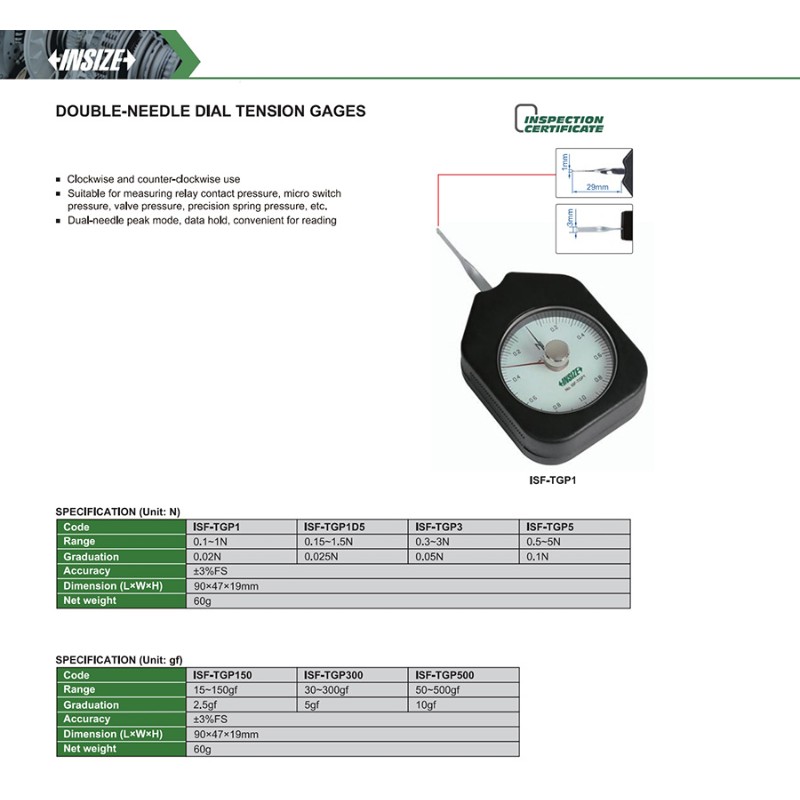

INSIZE ISF-TGP500 Double-Needle Dial Tension Gauge, 50-500gf. The INSIZE ISF-TGP500 is a double-needle dial tension gauge for measuring relay contact pressure, micro-switch pressure, valve pressure and precision spring pressure. It reads 50 to 500gf in 10gf graduations, accurate to ±3% of full scale, and works turning clockwise or counter-clockwise. Its second needle stays at the peak reading and can be held in place, so a single push or pull is easy to read back afterwards. The gauge measures 90 x 47 x 19mm and weighs 60g.
₹7,654.31 inclusive of GST
Product specifications
- Display Type
- Dial
- Type of Product
- DOUBLE-NEEDLE DIAL TENSION GAUGES
- Model No
- ISF-TGP500
- Brand
- Insize
- Accuracy
- ±3%FS
- Range
- 50~500gf
