INSIZE IST-IR1000 Compact Dynamic Torque Sensor 1000 N·m

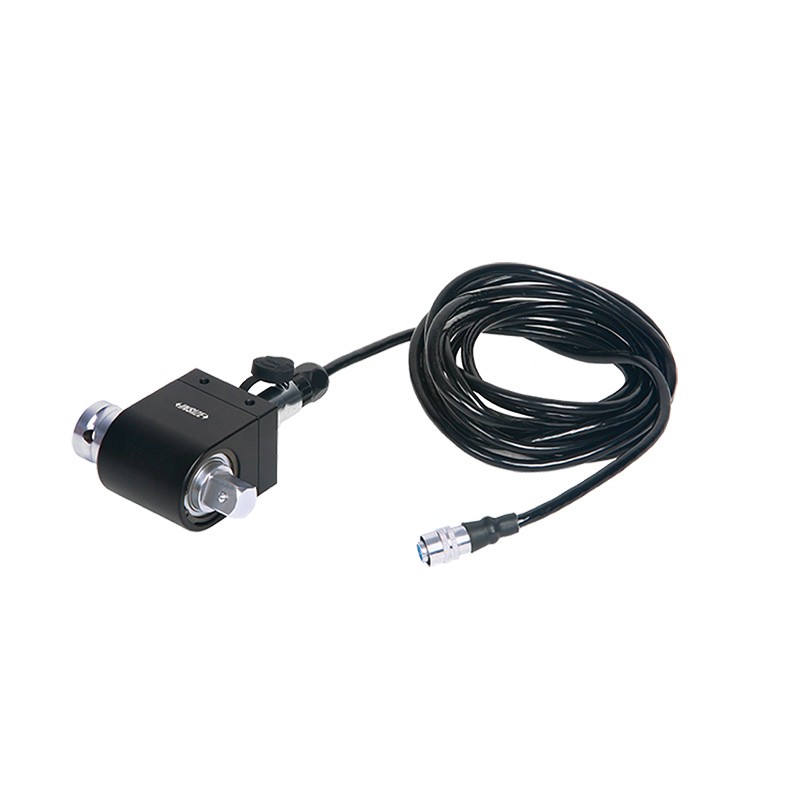

INSIZE IST-IR1000 Compact Dynamic Torque Sensor 1000 N·m. The INSIZE IST-IR1000 is a compact-type dynamic torque sensor rated to 1000 N·m, fitted with a 1" square drive. INSIZE positions it for testing electric, pneumatic and manual torque screwdrivers and torque wrenches, and for general torque monitoring, working in both clockwise and counter-clockwise directions. It is built in alloy steel, runs from a DC5~15V supply, and covers an RPM range up to 3000 rpm. INSIZE states an overall accuracy of ±0.2% F.S. and good long-term stability, but notes it is not suitable for high-speed shock torque measurement.
₹2,88,001.54 inclusive of GST
Product specifications
- Type of Product
- DYNAMIC TORQUE SENSORS (COMPACT TYPE)
- Model No
- IST-IR1000
- Brand
- Insize
- Installation method
- portable installation/mounted on machine
- Maximum range
- 1000N.m
- Sensor type
- rotary type
- Torque testing category
- dynamic torque
- With buffer
- no
