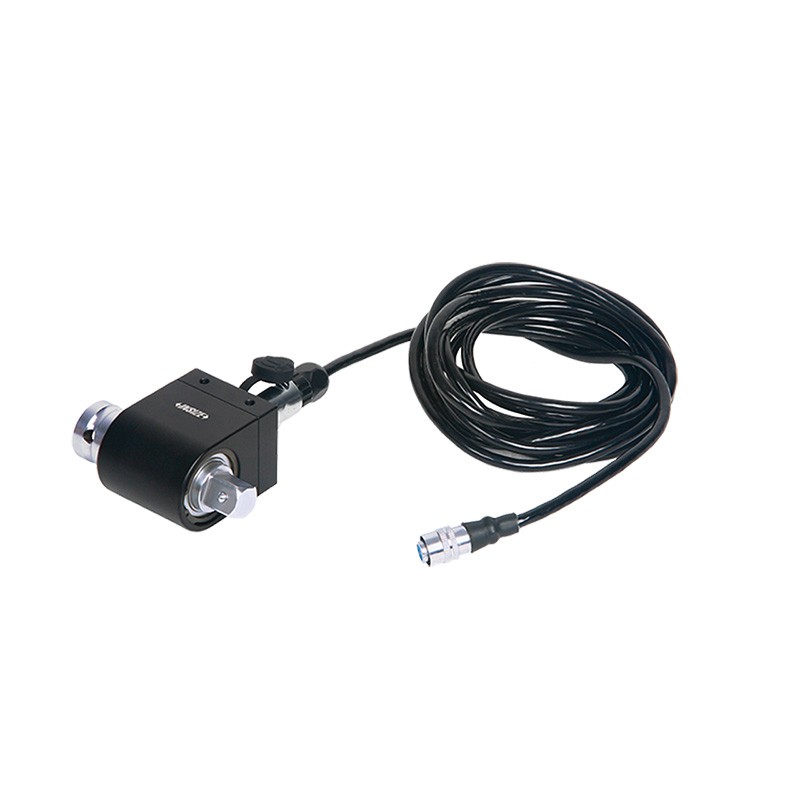

INSIZE IST-IR500 Compact Dynamic Torque Sensor 500 N·m
INSIZE IST-IR500 Compact Dynamic Torque Sensor 500 N·m. INSIZE's IST-IR500 dynamic torque sensor (compact type) has a maximum range of 500 N·m and a 1" square drive for direct fitting to torque tools. INSIZE lists it for testing electric, pneumatic and manual torque screwdrivers and wrenches and for torque monitoring, in either rotation direction. The sensor body is alloy steel, powered from DC5~15V, with an RPM range up to 3000 rpm, overall accuracy of ±0.2% F.S. and good long-term stability; INSIZE notes it is not meant for high-speed shock torque measurement.
₹2,51,501.78 inclusive of GST
Product specifications
- Type of Product
- DYNAMIC TORQUE SENSORS (COMPACT TYPE)
- Model No
- IST-IR500
- Brand
- Insize
- Installation method
- portable installation/mounted on machine
- Maximum range
- 500N.m
- Sensor type
- rotary type
- Torque testing category
- dynamic torque
- With buffer
- no
