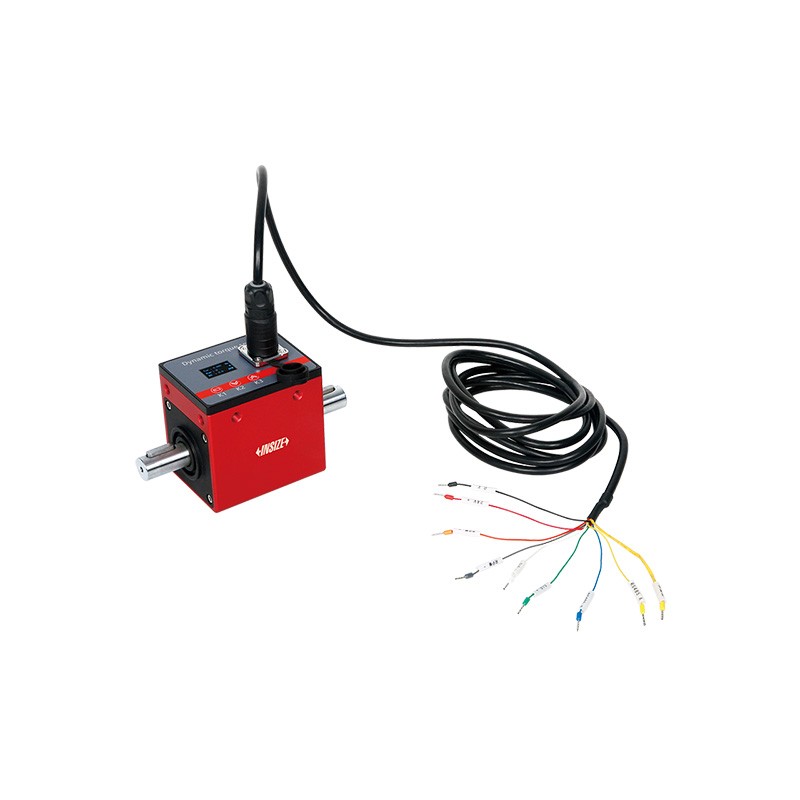

INSIZE IST-TA20000 Dynamic Torque Sensor 20000 N.m
INSIZE IST-TA20000 Dynamic Torque Sensor 20000 N.m. Rated to 20000N.m at up to 3000rpm, the INSIZE IST-TA20000 dynamic torque sensor displays torque, RPM and power in real time on a 128x64 OLED screen, using non-contact, wear-free digital signal transmission. It supports RS485 communication with active upload at up to 1000Hz and outputs torque as a +/-5V transformed voltage signal, with on-device calibration, zeroing and filtering. Made of stainless steel, it is accurate to +/-0.2% of full scale, rated for a 150% safety overload and 200% extreme overload, runs on 24V DC, and ships as the sensor alone on a 3-metre cable.
₹4,31,551.25 inclusive of GST

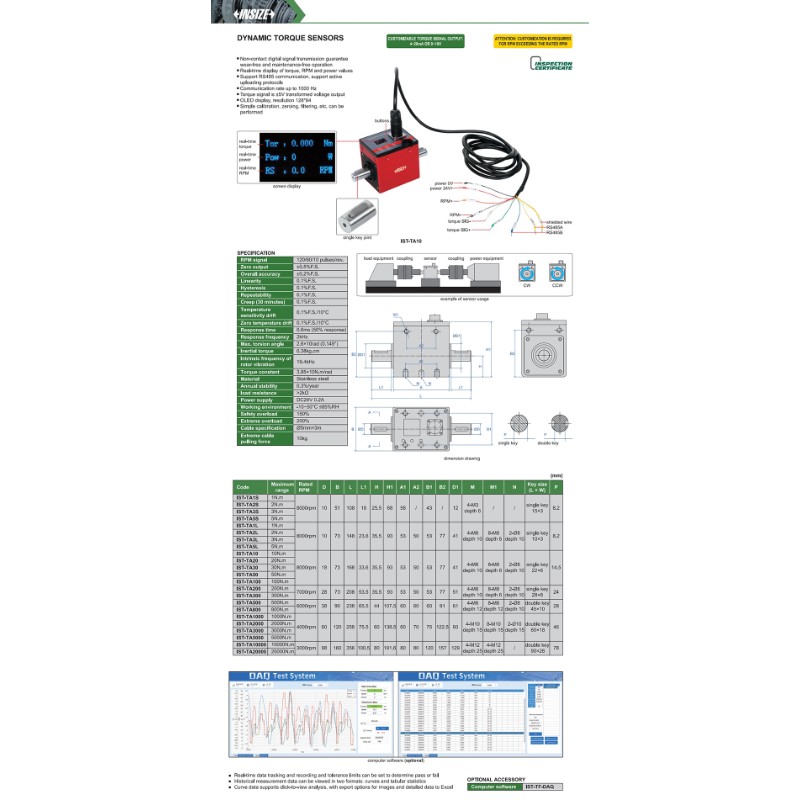

Product specifications
- Type of Product
- DYNAMIC TORQUE SENSORS
- Model No
- IST-TA20000
- Brand
- Insize
- Installation method
- mounted on machine
- Maximum range
- 20000N.m
- Sensor type
- rotary type
- Torque testing category
- dynamic torque
- With buffer
- NO
