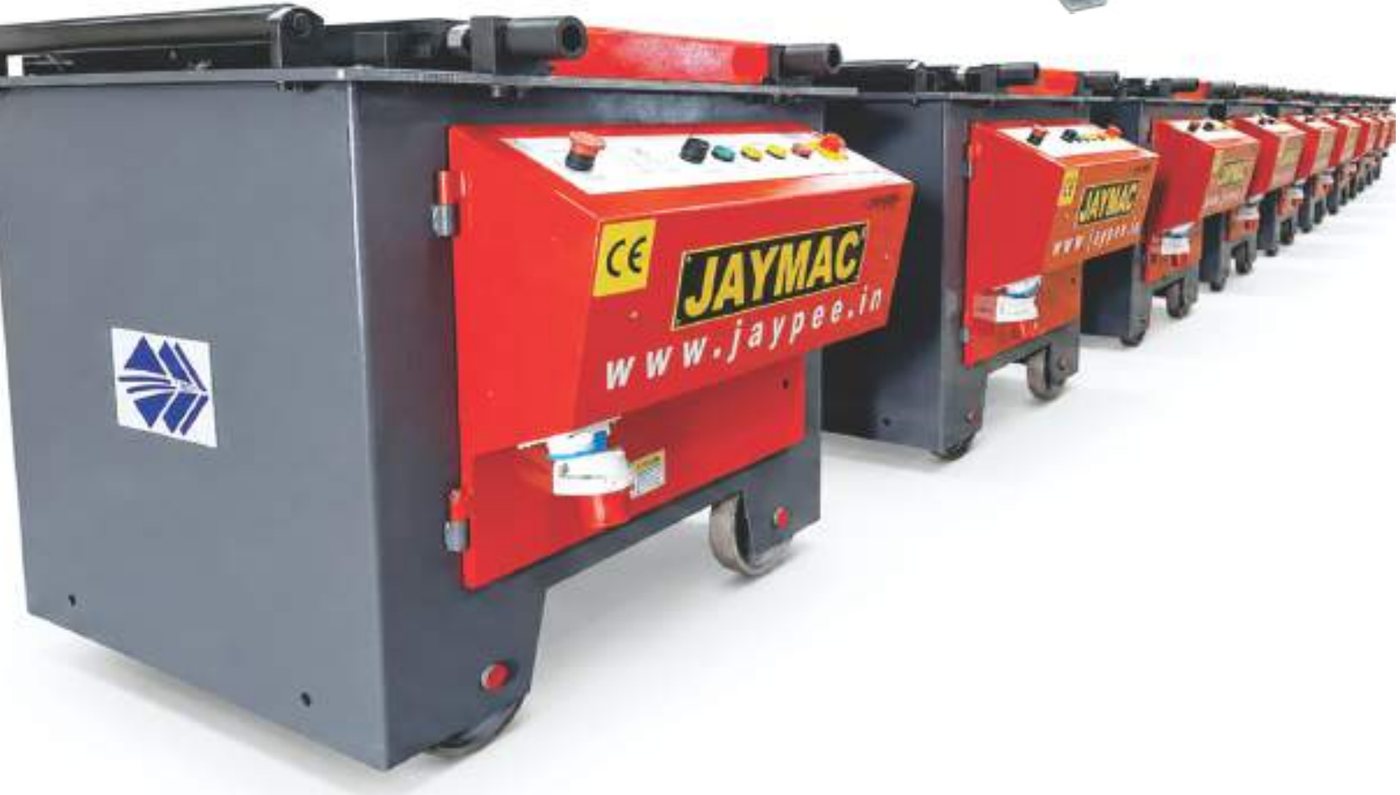

JAYMAC B40 Bar Bending Machine - 5 HP, Bends up to 28 mm Rebar, Semi-Automatic Preset Angle

JAYMAC B40 is a semi-automatic, durable, fast and cost-effective bar bending machine for bending reinforcement bars (TMT rebar) and round bars at construction sites, steel yards and precast plants. It raises the output of your steel yard while cutting manual labour, and the automatic angle selection gives precise one-step bends and stirrups at a preset angle — easy to run even for a new operator. Key Features: • Robust wide body with a heavy-duty, oil-bathed gearbox • Hardened forged alloy gears for maximum strength and long life • Automatic angle selection for repeatable preset bends • Push-button and foot-pedal bending for operator comfort • CE marked; castor wheels for moving around site Technical Specifications: • Model: B40 • Machine speed: 9 RPM • Motor: 5 HP • Max bar dia at 45 kg/mm² (1 / 2 / 3 bars): 28 / 20 / 10 mm • Max bar dia at 65 kg/mm² (1 / 2 / 3 bars): 28 / 16 / 8 mm • Max bar dia at 80 kg/mm² (1 / 2 / 3 bars): 25 / 12 / 6 mm • Dimensions (L x W x H): 860 x 910 x 880 mm • Weight (approx.): 500 kg Applications: Building and bridge construction, infrastructure projects, steel yards, rebar fabrication shops and precast units. Price on request — call/WhatsApp +91 63965 76830 for the best quotation, delivery time and freight to your site. Specifications are as per the manufacturer's brochure and may change without notice.
