JAYPEE BH-1000 D Builder Hoist - 1 Ton, 0.3 m³ Bucket, 40 m Height, 10 HP Diesel Engine

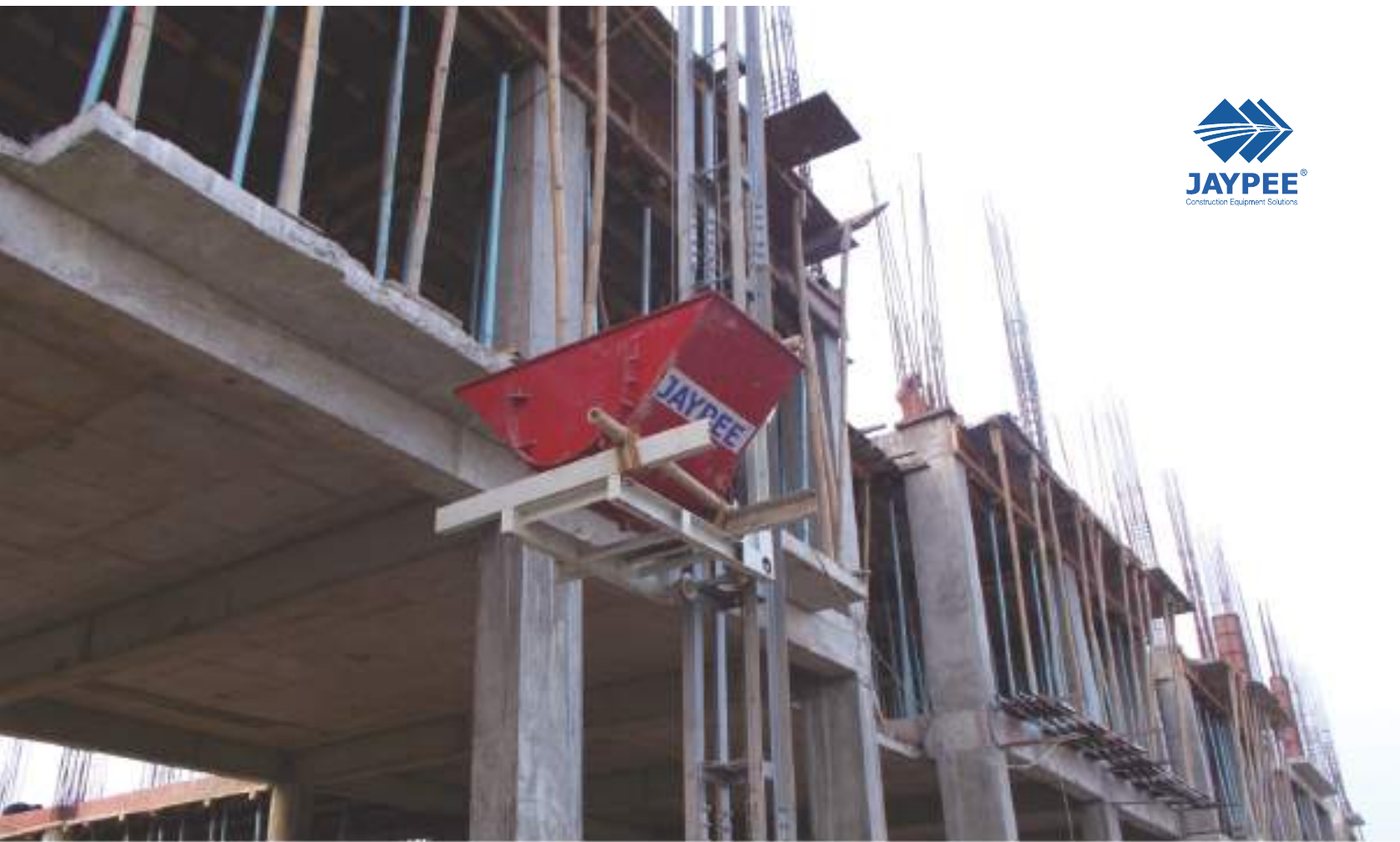

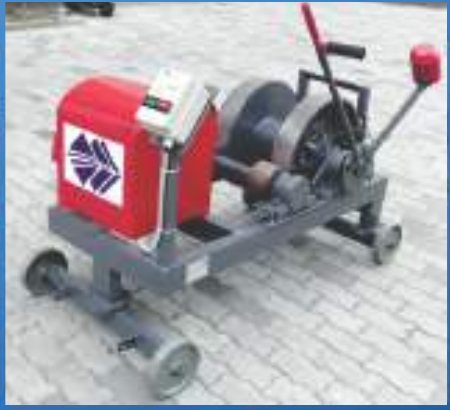

JAYPEE BH-1000 D Builder Hoist is specially designed to lift material to various heights at construction sites. Most of the structure is fabricated in 3 m lengths for easy transport and assembly, and the mast sections use high-quality fabrication and anti-twisting straightened steel for a long life. (Jaypee has erected a 2 ton winch up to 140 m height.) Key Features: • Diesel engine or electric motor drive • Extra-capacity winch for greater safety • Drive through friction rollers • Safety braking device • Square mast; heavy-duty MS channel trolley with guide rollers Technical Specifications: • Model: BH-1000 D • Capacity: 1 Ton • Material carrying capacity: 750 kg • Mast type: Square mast • Wire rope: 10 mm, 6 core steel wire • Trolley: Heavy-duty MS channel with guide rollers • Bucket volume: 0.3 m³ • Maximum working height: 40 m • Power rating: 10 HP Diesel Engine Applications: Construction sites — lifting concrete, bricks, sand and other materials to upper floors. Price on request — call/WhatsApp +91 63965 76830 for the best quotation, delivery time and freight to your site. Specifications are as per the manufacturer's brochure and may change without notice.
