Makita TR001GZ 40V Max Cordless Rebar Tying Tool (Bare Tool)
Spare parts for this tool
Makita 122K54-4 Curl Guide Assembly for TR001G₹18,622 incl. GST
Makita 122K71-4 Release Lever Assembly for TR001G₹1,206 incl. GST
Makita 137328-4 Spur Gear 21 Assembly for TR001G₹8,662 incl. GST
Makita 1410Y0-7 Magnet Holder D Complete for TR001G₹593 incl. GST
Makita 1410Y1-5 Magnet Holder A Complete for TR001G₹342 incl. GST
Makita 1411B8-6 Controller Complete for TR001G₹25,035 incl. GST
Makita 1411G5-7 Cutter Complete for TR001G₹5,176 incl. GST
Makita 1412D2-8 Magagine Cover Complete for TR001G₹1,355 incl. GST
Makita 1831M0-3 Housing Set for TR001G₹6,736 incl. GST
Makita 232919-7 Compression Spring 6 for TR001G₹39 incl. GST
Makita 232921-0 Compression Spring 4c for TR001G₹19 incl. GST
Makita 232922-8 Compression Spring 4b for TR001G₹15 incl. GST
Makita 232923-6 Compression Spring 4d for TR001G₹19 incl. GST
Makita 232924-4 Compression Spring 11 for TR001G₹22 incl. GST
Makita 232925-2 Torsion Spring 4a for TR001G₹35 incl. GST
Makita 253623-5 Flat Washer 9 for TR001G₹158 incl. GST
Makita 253632-4 Flat Washer 7 for TR001G₹79 incl. GST
Makita 256A08-0 Pin 5 for TR001G₹15 incl. GST
Makita 256A93-3 Grooved Pin 4a for TR001G₹158 incl. GST
Makita 256A96-7 Grooved Pin 4b for TR001G₹175 incl. GST
Makita 265E18-0 H.s.h.bolt M3x17 for TR001G₹248 incl. GST
Makita 312H72-4 Reel Bearing for TR001G₹183 incl. GST
Makita 312H73-2 Reel Base for TR001G₹250 incl. GST
Makita 313603-4 Wire Guide A for TR001G₹2,415 incl. GST
Makita 313606-8 Cutter Guide for TR001G₹3,496 incl. GST
Makita 313608-4 Wire Guide B for TR001G₹2,115 incl. GST
Makita 313613-1 Wire Bender for TR001G₹433 incl. GST
Makita 327E71-5 Shoulder Sleeve 4a for TR001G₹179 incl. GST
Makita 327E72-3 Shoulder Sleeve 4b for TR001G₹255 incl. GST
Makita 347D29-2 Cutter Base for TR001G₹4,469 incl. GST
Makita 347D32-3 Slide Plate for TR001G₹1,643 incl. GST
Makita 347D33-1 Side Plate for TR001G₹1,768 incl. GST
Makita 347D34-9 Curl Guide C for TR001G₹4,208 incl. GST
Makita 347D38-1 Slide Plate Guide for TR001G₹375 incl. GST
Makita 347D47-0 Guide Plate for TR001G₹503 incl. GST
Makita 4131T8-5 Gear Cover for TR001G₹282 incl. GST
Makita 4131T9-3 Magazine Cover Lock for TR001G₹235 incl. GST
Makita 4131U3-2 Plate Cover for TR001G₹198 incl. GST
Makita 4131U6-6 Slide Plate Cover for TR001G₹129 incl. GST
Makita 619896-4 Rotor for TR001G₹4,210 incl. GST
Makita 619897-2 Rotor for TR001G₹3,979 incl. GST
Makita 629D10-8 Stator for TR001G₹1,132 incl. GST
Makita 629D11-6 Stator for TR001G₹1,142 incl. GST
Makita 632W63-2 Switch Unit for TR001G₹1,349 incl. GST
Key facts
- Brand
- Makita
- Model
- TR001GZ
- Returns
- Not returnable — replacement if damaged or defective
- Payment
- UPI, cards or net banking, bank transfer
Secure checkout GST invoice
4.3 / 5924 ratings on IndiaMART TrustSEALIndiaMART verified GSTRegistered business
| Features | |
|---|---|
| Model | TR001GZ |
| Image Note | Manufacturer base-model photograph; refer to product name for included kit contents. |
| Rebar tying range | D10 x D10 to (D16 x 2) x (D16 x 2) |
| Tie wire | 1.6 mm (16 Ga) annealed wire |
| Tying speed | 0.7 s per tie |
Specifications
| Image Note | Manufacturer base-model photograph; refer to product name for included kit contents. |
| Rebar tying range | D10 x D10 to (D16 x 2) x (D16 x 2) |
| Tie wire | 1.6 mm (16 Ga) annealed wire |
| Tying speed | 0.7 s per tie |
| Number of ties | 240 per reel, 3,900 per BL4040 charge |
| ITEM WEIGHT | 3.3–4.5 kg (depends on battery) |
| VOLTAGE | 40 V max (XGT) |
| Applicable rebar for tying | D10 x D10 – (D16 x 2 ) x (D16 x 2) |
| Applicable tie wire | Annealed wire: 16Ga (1.6 mm) |
| Dimensions (Battery) | BL4040 |
| Dimensions (L x W x H) | 375 x 113 x 331 mm (14-3/4 x 4-7/16 x 13″) |
| Easy loading for tying wire | Yes |
| Hook | Yes |
| Net weight | 3.3 – 4.5 kg |
| Net weight (Attachment) | w/o Wire |
| Net weight (Battery) | BL4020 – BL4080F |
| Nose width | 5.6 mm (7/32″) |
| Notification lamp | Battery fuel gauge: Yes (on battery) |
| Sound power level | 88 dB (A) (EN60745-2-18) |
| Sound pressure level | 80 dB (A) (EN60745-2-18) |
| Trigger lock function | Yes |
| Tying strength | D10 x D10: 305 % |
| Tying strength adjustment | Yes (6 Stages) |
| Vibration level | 2.5 m/s² or less (EN60745-2-18, Mode: Tying metal rod) |
| Wire pullback | Yes |
| Wire tail height | 16 mm (5/8″) |
| Wire twisting direction | Clockwise |
| HSN code | 84672900 |
| GST rate | 18% |
Description

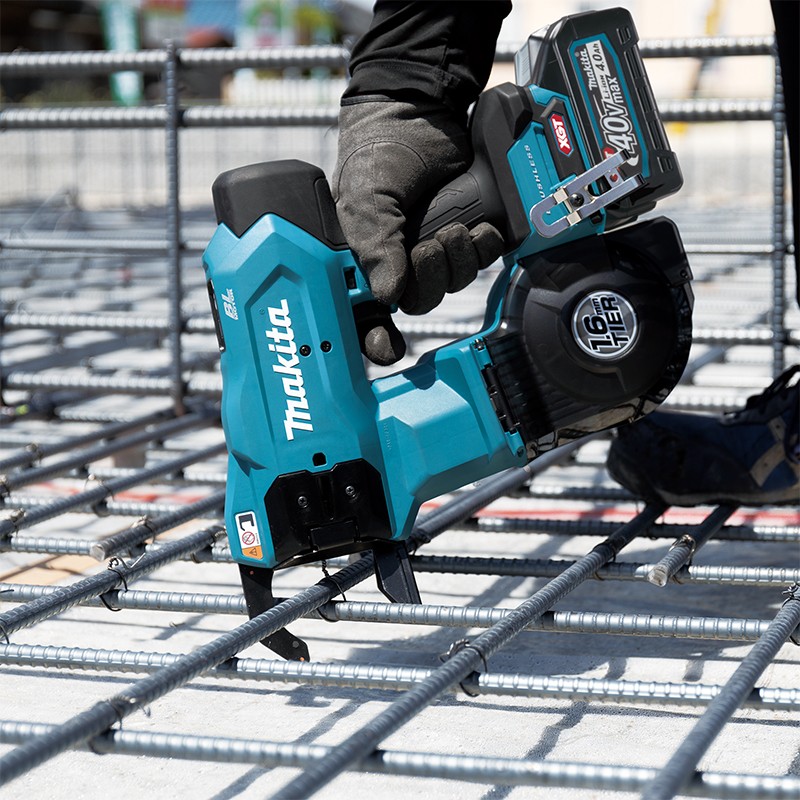

The TR001GZ is Makita's 40V max XGT cordless rebar tying tool, built with dual BL brushless motors to twist and feed 1.6 mm annealed tie wire. Makita states a tying speed of 0.7 seconds, a range from D10 x D10 up to (D16 x 2) x (D16 x 2) rebar, and a wire pullback mechanism that holds the wire tip for a tight, secure tie. Tying strength is adjustable across six stages, and a hook fitting up to D19 rebar lets the tool hang from the rebar cage. It is rated to XPT water and dust protection. Supplied as a bare tool: battery and charger not included.
