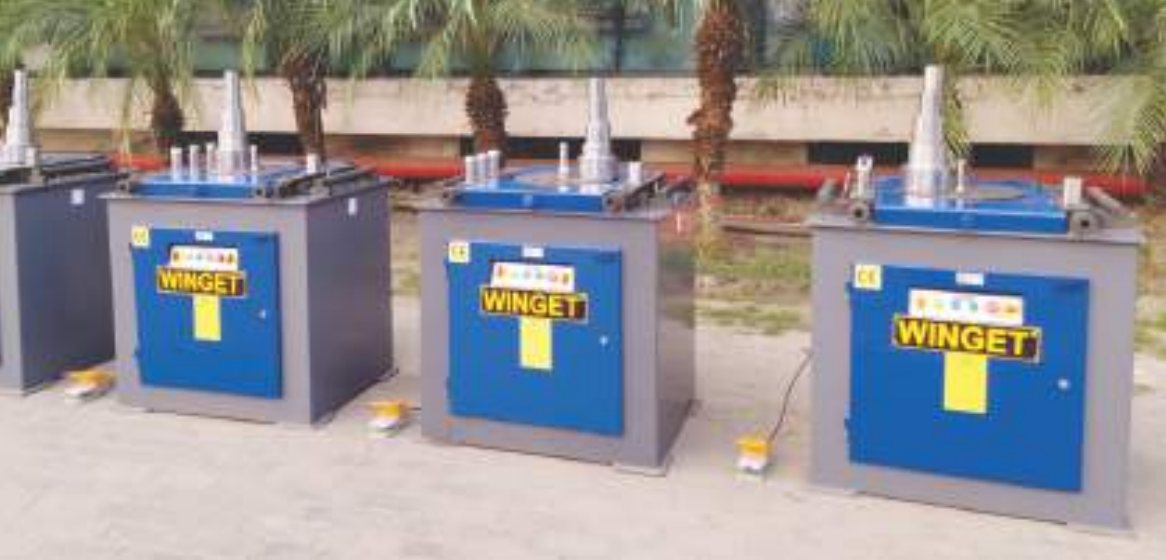

WINGET WB42 Bar Bending Machine - Up to 36 mm Rebar, PLC Preset 90°/135° Angles

WINGET WB42 Bar Bending Machine bends TMT rebar of all common grades (Fe 500 to Fe 600) with programmable preset angles. A hatch-protected operating console with PLC control keeps every bend accurate and repeatable, while the moly-grease-filled gearbox needs practically no maintenance. Key Features: • In-built tool box; collapsible heavy-duty lifting lugs; grouting legs • Hatch-protected operating console with pre-set angles (90° and 135°), settable at site; PLC controlled • Operator-side electrical panel for easy maintenance access • Moly-grease-filled gearbox for lifetime low maintenance • Phase reversal and phase loss protection; over-current protection through MCB and overload relays • CE marked; foot pedal operation Technical Specifications: • Model: WB42 • No. of bars bent/cut at once — Fe 500 (50 kg/mm²): 36 mm: 1, 32 mm: 1, 25 mm: 1, 20 mm: 2, 16 mm: 3, 12 mm: 3, 10 mm: 4, 8 mm: 6 • No. of bars bent/cut at once — Fe 500D (60 kg/mm²): 32 mm: 1, 25 mm: 1, 20 mm: 1, 16 mm: 2, 12 mm: 3, 10 mm: 4, 8 mm: 5 • No. of bars bent/cut at once — Fe 550D (70 kg/mm²): 32 mm: 1, 25 mm: 1, 20 mm: 1, 16 mm: 2, 12 mm: 3, 10 mm: 4, 8 mm: 5 • No. of bars bent/cut at once — Fe 500S / Fe 600 (78 kg/mm²): 25 mm: 1, 20 mm: 1, 16 mm: 2, 12 mm: 3, 10 mm: 4, 8 mm: 5 Applications: Rebar yards, building and infrastructure construction, precast plants. Price on request — call/WhatsApp +91 63965 76830 for the best quotation, delivery time and freight to your site. Specifications are as per the manufacturer's brochure and may change without notice.
