INSIZE 2936-51 Digital Flushness Gauge, ±5mm

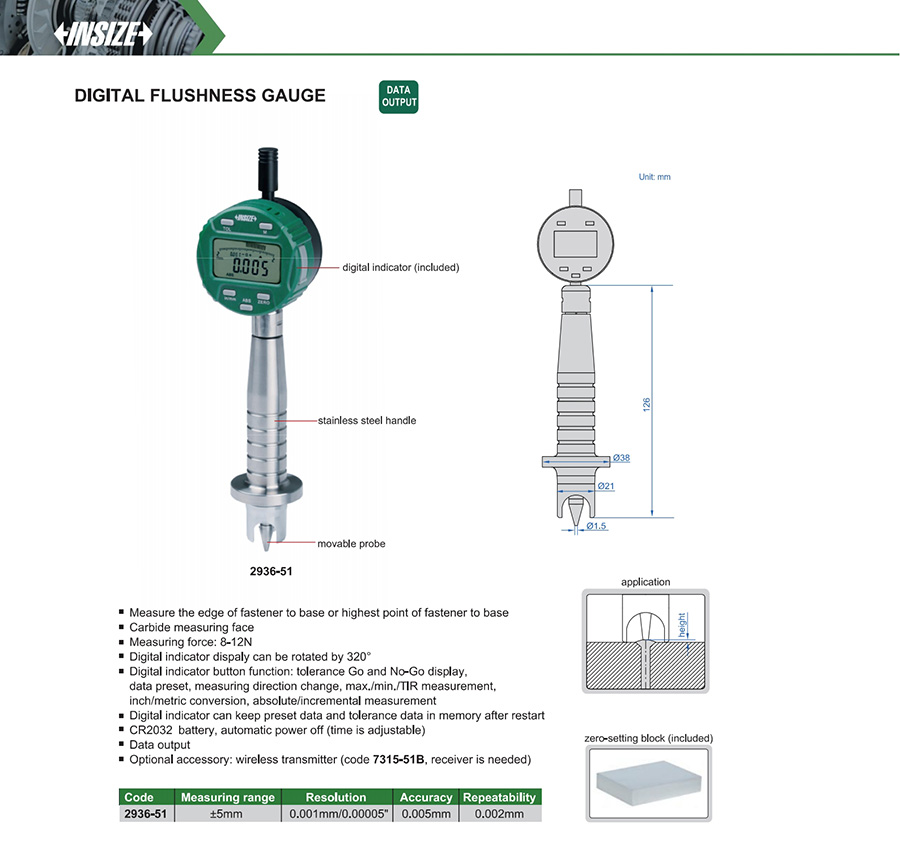

The INSIZE 2936-51 digital flushness gauge measures ±5mm at 0.001mm/0.00005" resolution with ±0.005mm accuracy and 0.002mm repeatability, checking how far a fastener or pin sits proud of or below a surface. A carbide tip on a stainless-steel handle contacts the highest point of the fastener while a movable probe rides the surrounding surface, and the rotatable digital display applies 8-12N of measuring force. Buttons set tolerance go/no-go limits, preset data, measuring direction, maximum/minimum/TIR readings and inch/metric units, and preset values stay in memory even when the CR2032 battery is changed. A zero-setting block and data output are included, with a wireless transmitter available as an option.
