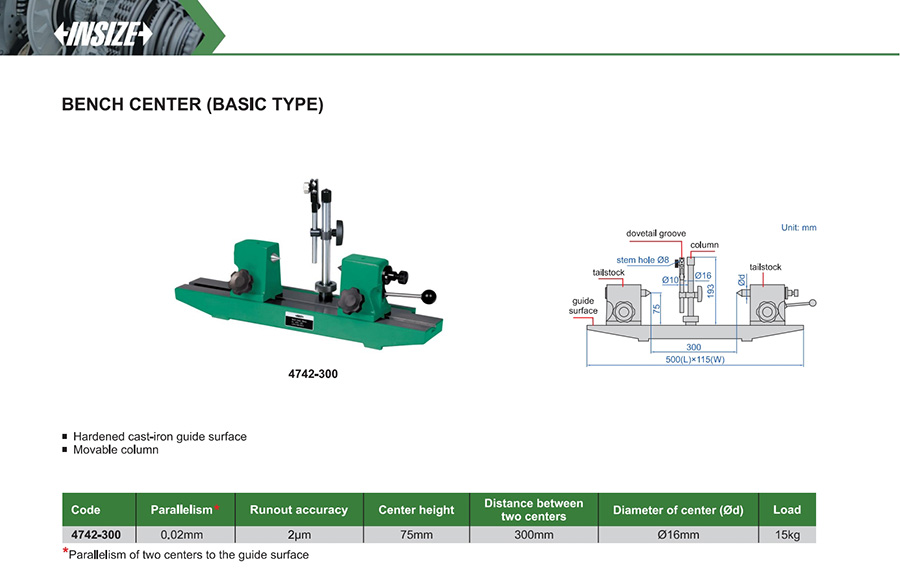

INSIZE 4742-300 Bench Center (Basic Type), 300mm

The INSIZE 4742-300 bench center (basic type) holds a workpiece up to 300mm between its two centers, on a hardened cast-iron guide surface with a movable column, so runout or concentricity can be checked with an indicator mounted on the column, bought separately. INSIZE states a runout accuracy of 2µm, a parallelism of the centers to the guide surface of 0.02mm, a 75mm center height and a 16mm center diameter, and rates it to a 15kg load, lighter duty than INSIZE's V-slot bench centers.
