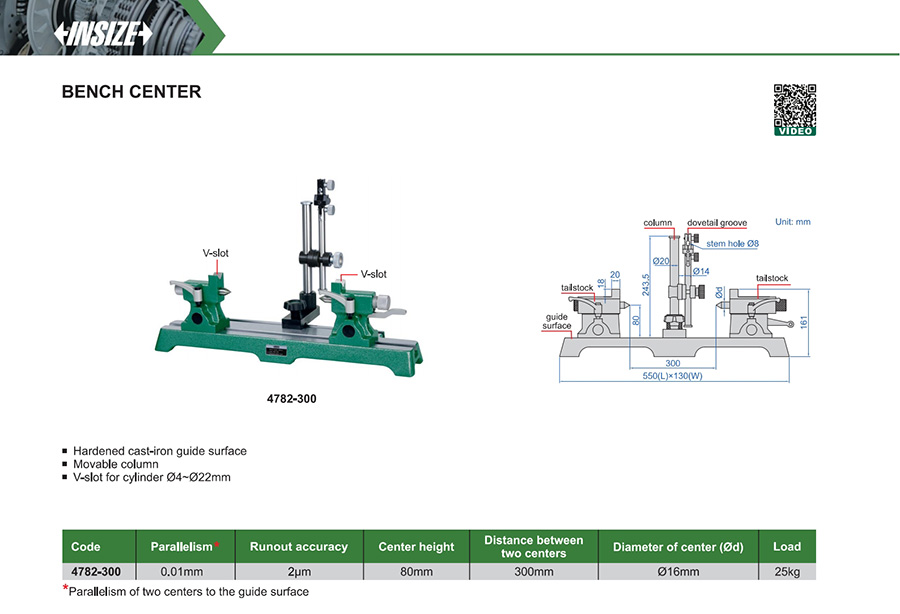

INSIZE 4782-300 Bench Center, 300mm

The INSIZE 4782-300 bench center holds a workpiece up to 300mm between its two centers, on a hardened cast-iron guide surface, so runout, concentricity or diameter can be checked with an indicator mounted on the movable column, bought separately. Its two V-slots take cylinders from Ø4 to Ø22mm directly, without centering them first. INSIZE states a runout accuracy of 2µm, a parallelism of the centers to the guide surface of 0.01mm, an 80mm center height and a 16mm center diameter, and rates it to a 25kg load.
