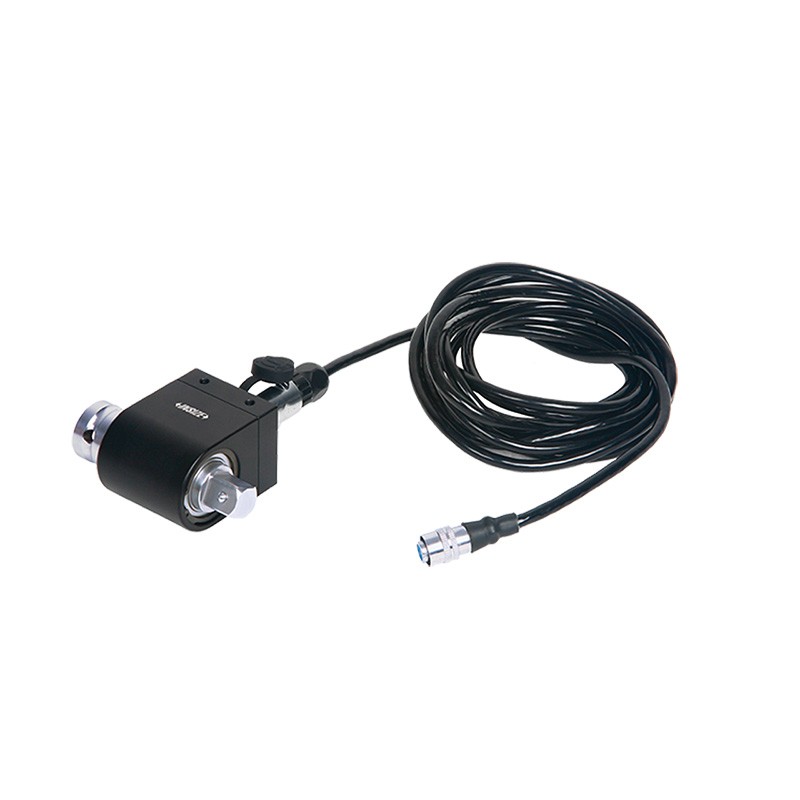

INSIZE IST-IR1S Dynamic Torque Sensor 1 N.m
INSIZE IST-IR1S Dynamic Torque Sensor 1 N.m. INSIZE's IST-IR1S dynamic torque sensor (compact type) has a hexagonal drive and covers a 1 N.m maximum range, for testing electric, pneumatic and manual torque screwdrivers and torque wrenches and for torque monitoring at up to 3000 rpm. INSIZE states an accuracy of ±0.2% of full scale, a response time of 1.0 ms, and clockwise/counter-clockwise operation, with a body in alloy steel. It is rated to withstand 150% safety overload (200% at the extreme), runs on a 3 m cable, and INSIZE marks it unsuitable for high-speed shock torque measurement.
₹1,81,953.64 inclusive of GST
Product specifications
- Type of Product
- DYNAMIC TORQUE SENSORS (COMPACT TYPE)
- Model No
- IST-IR1S
- Brand
- Insize
- Installation method
- portable installation/mounted on machine
- Maximum range
- 1N.m
- Sensor type
- rotary type
- Torque testing category
- dynamic torque
- With buffer
- no
