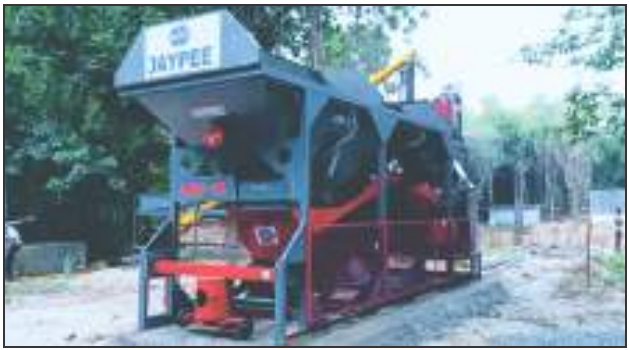

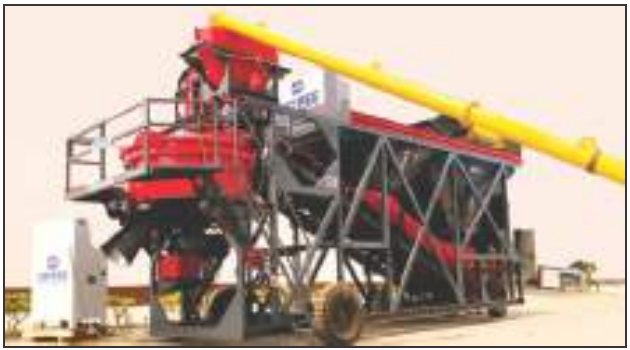

JAYPEE ABP-20P Mobile Automatic Concrete Batching Plant - Pan Mixer, 18–20m³/hr, PLC

JAYPEE ABP-20P Automatic Batching Plant (ABP) is a cost-effective, complete mobile concrete production unit with a pan mixer. Its wheeled design gives easy, low-cost transport and mobility, while computer-aided PLC control gives speedy, precise weighing of every ingredient and coordinated, secure performance for a long working life. Key Features: • Four-bin aggregate feeder with aggregate weighing conveyor • Cement weighing hopper, water tank and admixture dosing weighing tank • Pan mixer with hydraulic discharge system • Screw conveyor, air compressor and electric control panel • PLC based B&R control panel with pendrive batch print • Heat-proof control cabin; wheels for high mobility • Robust design, large capacity, low maintenance cost Technical Specifications: • Model: ABP-20P • Mixer type: Pan • Mixer output: 18 – 20 m³/hr • Batch capacity: 0.3 m³ • Batch time: 50 sec / batch • Power transmission: 20 HP geared motor • Control system: Fully automatic / manual • Dry capacity: 850 L • Drum RPM: 32 rpm • Frame & chassis: All rigid steel structure • Gate opening: Pneumatic control pan gate open • Weighing system: Digital load cell based • Compressor: Powered by 3 HP motor • Control panel: PLC based B&R control panel with pendrive for batch print • Screw conveyor (optional): 180 dia, 7 m length, 7.5 HP motor, 1000 kg Applications: Roads, highways, bridges, buildings, precast yards and project sites that need concrete on the move. Price on request — call/WhatsApp +91 63965 76830 for the best quotation, delivery time and freight to your site. Specifications are as per the manufacturer's brochure and may change without notice.
