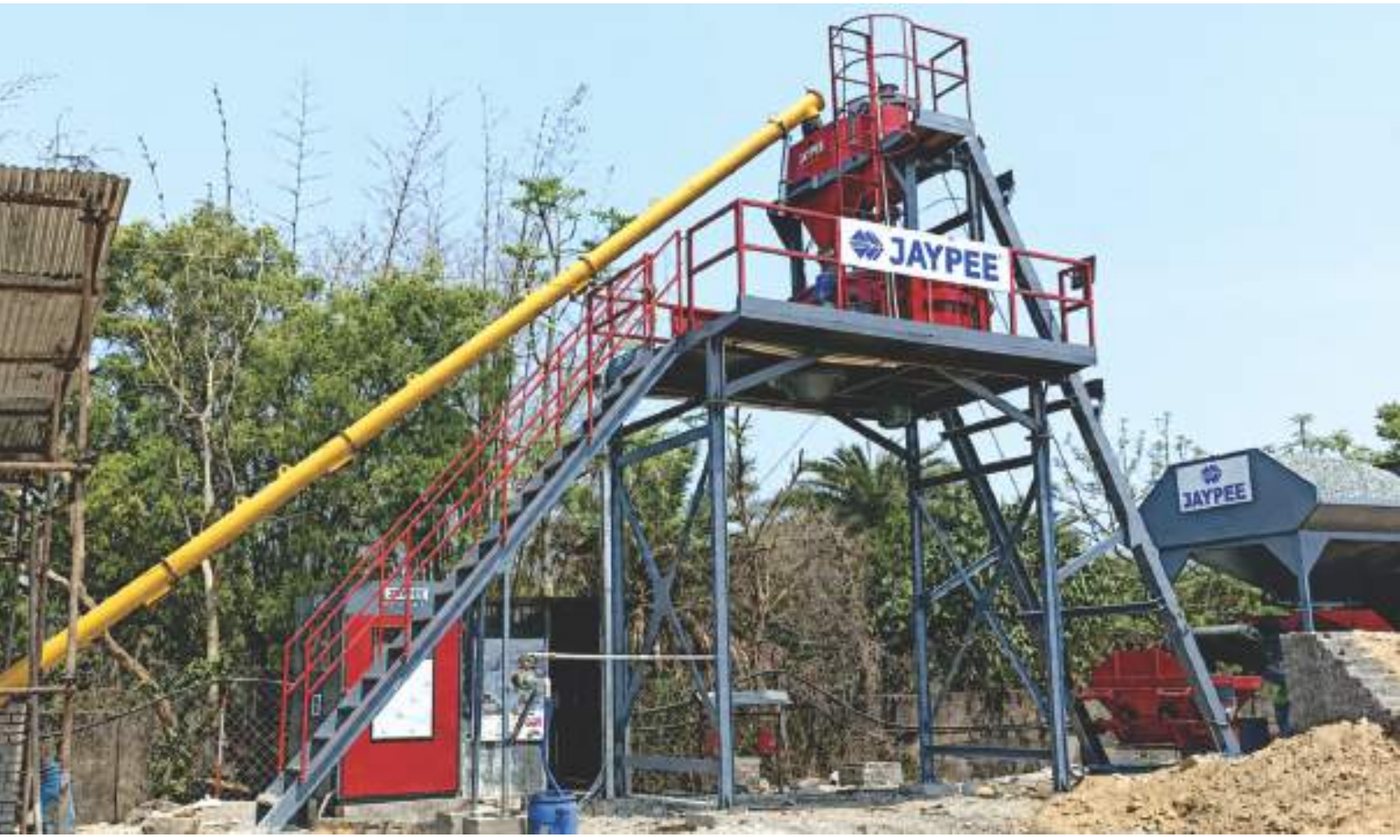

JAYPEE ABP-30 Automatic Concrete Batching Plant - Pan Mixer, 28–30m³/hr, PLC with Batch Printer

JAYPEE ABP-30 Automatic Batching Plant combines cement, sand, admixture and aggregates into a uniform concrete mix, ready to go to the job site by concrete pumps and transit mixers. It has four compartments for sand and different grades of gravel and a PAN mixer driven by a planetary gearbox; cement and fly-ash come by screw conveyor and water/admixture from storage at the top. Load cells on every hopper and remote recipe control give remarkably consistent, homogeneous concrete. Self-loading — suitable where labour is scarce and ground conditions suit only earth-movers. Key Features: • Pan mixer driven by planetary gearbox • Four aggregate compartments with digital load cell weighing • Pneumatic bin gates with 3 HP compressor; hydraulic pan gate (5 HP) • Screw conveyor 12 m, 219 mm dia • PLC based B&R control panel with printer for batch print • All rigid steel structure Technical Specifications: • Model: ABP-30 • Mixer type: Pan • Mixer output: 28 – 30 m³/hr • Batch capacity: 0.5 m³ • Batch time: 60 sec / batch • Power transmission: 30 HP geared motor • Dry capacity: 750 L • Frame & chassis: All rigid steel structure • Bin gate opening: Pneumatic, 3 HP compressor • Weighing system: Digital load cell based • Pan gate opening: 5 HP motor, hydraulic operated • Screw conveyor: Length 12 m, 219 mm dia • Control panel: PLC based B&R control panel with printer for batch print Applications: Highways, bridges, metro, high-rise buildings, dams, precast and RMC plants. Price on request — call/WhatsApp +91 63965 76830 for the best quotation, delivery time and freight to your site. Specifications are as per the manufacturer's brochure and may change without notice.
