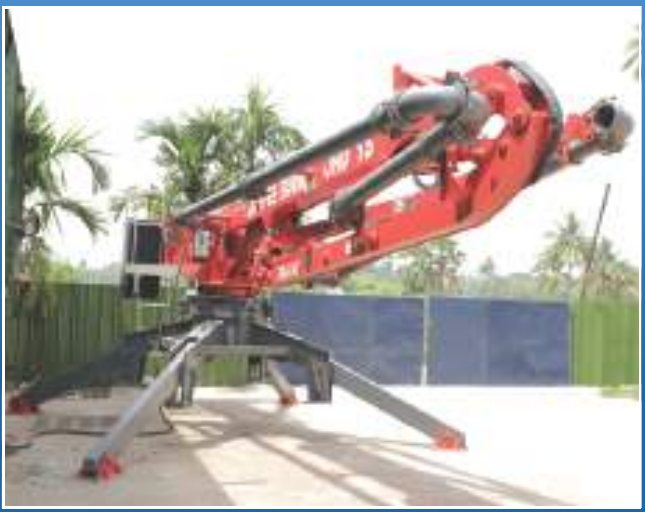

JAYPEE JHD-13 Hydraulic Concrete Boom Placer - 13 m Radius, 360° Slewing, Radio Remote

JAYPEE JHD-13 Hydraulic Concrete Boom Placer delivers concrete from static concrete pumps to places no other machine can reach, especially on high-rise buildings. Placing the self-climbing boom at the right vantage points helps the pump work at its best and speeds up pours. Easy to install, dismantle and transport, with 360° articulation for uniform concrete distribution and robust, tested hydraulics. Key Features: • 13 m placing radius, 360° slewing • 3-section “R” type boom with 125 mm (5") delivery pipeline • Cable remote and radio remote control • Self-climbing; optional tubular column 600 x 600 x 6000 mm • Robust build and tested hydraulics for long life Technical Specifications: • Max. radius of placing boom: 13 m • Max. height of working reach: 15,300 mm • Slewing range: 360° max • Total weight (without counter-weight): 2950 kg • Counter weight: 1500 kg • Heaviest component: 2125 kg • Electric power: 3 phase, 380 / 460 V, 50-60 Hz • Motor: 7.5 HP (5.625 kW) • Hydraulic system pressure: 28 MPa • Oil tank: 45 L • Delivery pipeline: 125 mm / 5" • End hose length: 3000 mm • 1st section: 5000 mm, 0–87° • 2nd section: 4000 mm, 0–180° • 3rd section: 4000 mm, 0–180° Applications: High-rise buildings, slabs, columns, cores, bridges and large pours with static concrete pumps. Price on request — call/WhatsApp +91 63965 76830 for the best quotation, delivery time and freight to your site. Specifications are as per the manufacturer's brochure and may change without notice.
