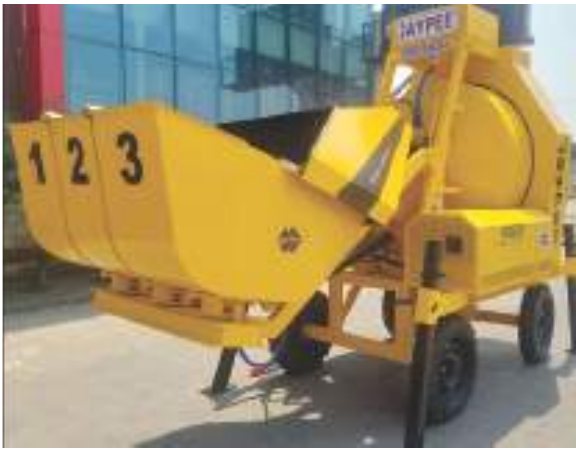

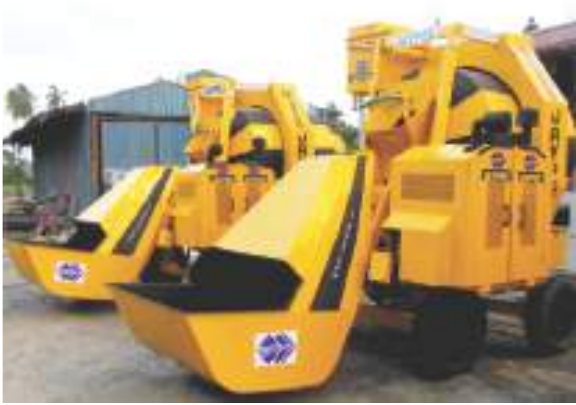

JAYPEE EX-1050-D Reversible Drum Batch Mix Plant - 10–12m³/hr, 1100 kg 3-Bin Load Cell Weighing, Diesel

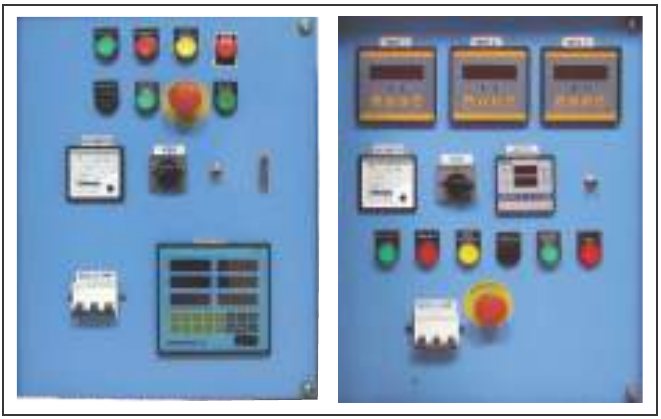

JAYPEE EX-1050-D Reversible Drum Batch Mix Plant is a self-loading reversible drum concrete mixer with 3-bin load-cell weigh batching — known for reliable high-quality output and maintenance-free operation. The revolving drum mixes on forward rotation and discharges on reverse, giving uniform concrete and enough working time before the mix sets. Key Features: • Uniform mixing with accurately set mixing blades and drum rotation as per IS specifications • Load cell based 3-bin weighing system with digital display batch controller • Shutter vibrator on the discharge chute avoids clogging • Four-wheel chassis for sturdy manoeuvrability; pin-type jack levelling (4 nos) • Imported hydraulics for continuous performance • Special design hopper vibrator and centralised lubrication system fitted • Optional: printing system with USB, admixture dosing, conveyor system Technical Specifications: • Model: EX-1050-D • Hopper capacity (dry): 1100 kg • Batch capacity (wet): 0.4375 m³ • Machine output: 10 – 12 m³/hr (24 batches/hr, M20 1:1.5:3) • Weighing type: 3 bin • Water dosing: Manual • Hydraulic pump: 27 lpm @ 210 bar • Gear ring & roller: Accurately machined, heavy-duty guide rollers • Wheels: Pneumatic 6" x 16" (4 nos) • Jack levelling: Pin type (4 nos) • Dimensions (L x W x H): 4600 x 1890 x 2740 mm • Weight (approx.): 2650 kg Applications: Roads, bridges, buildings, metro, industrial floors and sites needing RMC-quality concrete on the spot. Price on request — call/WhatsApp +91 63965 76830 for the best quotation, delivery time and freight to your site. Specifications are as per the manufacturer's brochure and may change without notice.
