JAYPEE 3 Bin Digital Concrete Mixer - Load Cell Weighing, 3-3.5 m³/hr, 6.5 HP Diesel, Hydraulic Hopper

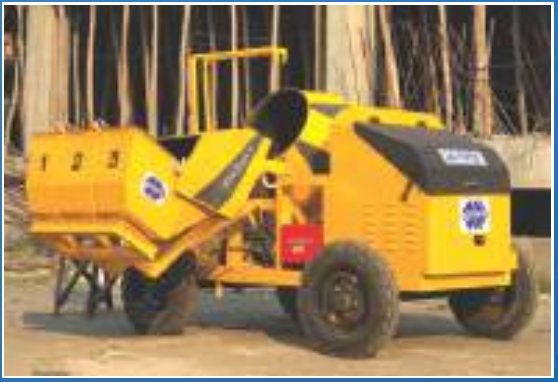

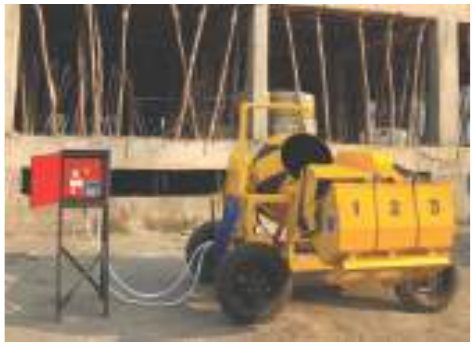

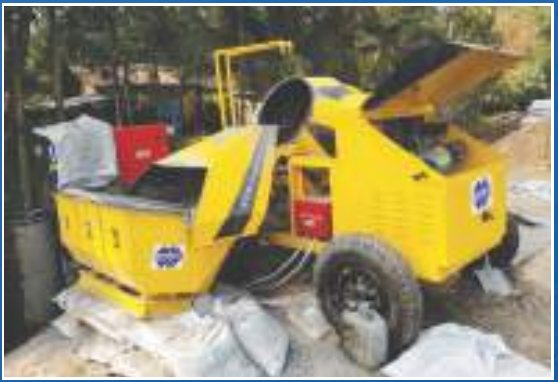

JAYPEE 3 Bin Digital Concrete Mixer is a compact weigh-batching mixer known for robust build, rigidity and long life. Built to IS 1791:1968, it weighs cement, sand and aggregate in three bins with a load-cell digital batch controller and doses water digitally, giving uniform, design-mix quality concrete at site. Key Features: • Easy to operate and handle; convenient discharge • Fabricated yoke for optimum performance • Wide wheel base for better stability; easy-to-transport chassis • Easy swivel arrangement; convenient lubrication • Mixing drum for fast, perfect mixing • Rust resistant; minimum maintenance • 3-bin load-cell weighing system with digital batch controller • Digital water dosing; chemical (admixture) pump • Hydraulic loading hopper with heavy-duty power pack • Mixer discharges right into the hoist bucket Technical Specifications: • Hopper capacity 3 bin (dry): 300 kg • Batch capacity (wet): 0.125 m³ • Batch time: 2 min 30 sec (approx.) • Machine output: 3 – 3.5 m³/hr (24 batches/hr, M20) • Power: 6.5 HP diesel engine • Weighing system: Load cell based with digital display batch controller • Water dosing: Digital • Alternator: 3 kVA, 230 V • Hydraulic pump: 19 LPM gear pump @ 207 bar • Gear ring & bevel pinion: Accurately machined, supported by heavy-duty pinion • Wheels: 500 x 19 pneumatic tyres with pressed steel rims – 4 nos • Chemical pump: 0.37 kW / 0.5 HP, 230 V • Dimensions (L x W x H): 2600 x 2300 x 2300 mm • Drum speed: 19 RPM • Mixing drum & blades: MS 12 mm lower drum, 3.15 mm MS upper drum, heavy-duty MS blades Applications: Residential and commercial buildings, roads, RMC-quality concrete at small and mid-size sites. Price on request — call/WhatsApp +91 63965 76830 for the best quotation, delivery time and freight to your site. Specifications are as per the manufacturer's brochure and may change without notice.
