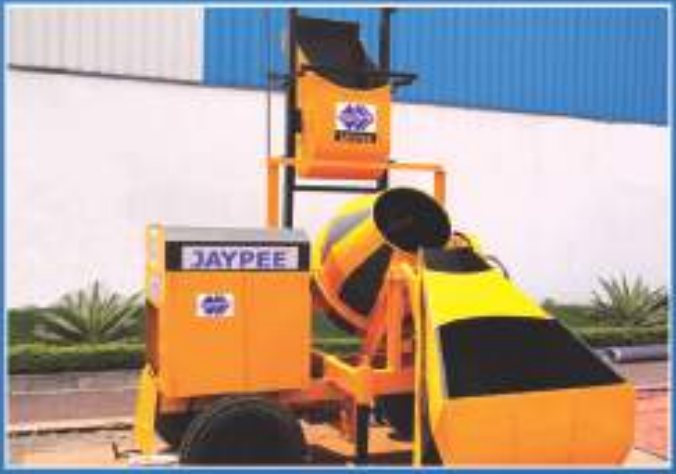

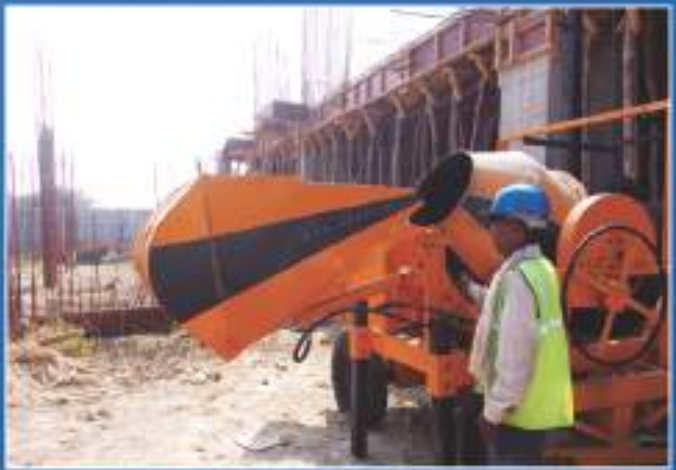

JAYPEE 10/7 Concrete Mixer with Hoist (Lift) - Electric, 450 kg Winch, 20-30 m Height (CMH-1 E)

JAYPEE 10/7 Concrete Mixer with Lift (CMH-1 E) mixes concrete and lifts it straight up to the working floor. It is built to IS 1791:1968 from high-grade components and quality tested before dispatch. The mixer discharges right into the hoist bucket, and one operator can run both the mixer and the vertical lifting bucket — cutting labour and material wastage and speeding up slab work. Key Features: • Easy to operate and handle; convenient discharge • Fabricated yoke for optimum performance • Wide wheel base for better stability; easy-to-transport chassis • Easy swivel arrangement; convenient lubrication • Mixing drum for fast, perfect mixing • Rust resistant; minimum maintenance • Mixer discharges directly into the hoist bucket — saves a lot of time • Single man can operate both mixer and vertical lifting bucket • Hydraulic loading hopper with heavy-duty power pack; cabin with hinge door Technical Specifications: • Model: CMH-1 E • Drum capacity: 10/7 cft • Prime mover cabin: With hinge door • Loading hopper: Hydraulic operated with heavy-duty power pack • Concrete mixing time: 2 min 30 sec • Drum speed: 19 rpm • Lift: 2-poled method • Winch lifting capacity: 450 kg • Winch height: 20 to 30 m • Production rate: 3 – 3.5 m³/hr • Electric prime mover (lift height 1-14 m / 15-25 m / 25-32 m): 5 / 7.5 / 10 HP Applications: Multi-storey buildings, slab casting, residential and commercial construction. Price on request — call/WhatsApp +91 63965 76830 for the best quotation, delivery time and freight to your site. Specifications are as per the manufacturer's brochure and may change without notice.
