INSIZE 2420-60 Bore Gauge For Blind Holes With Dial Indicator 35-60mm

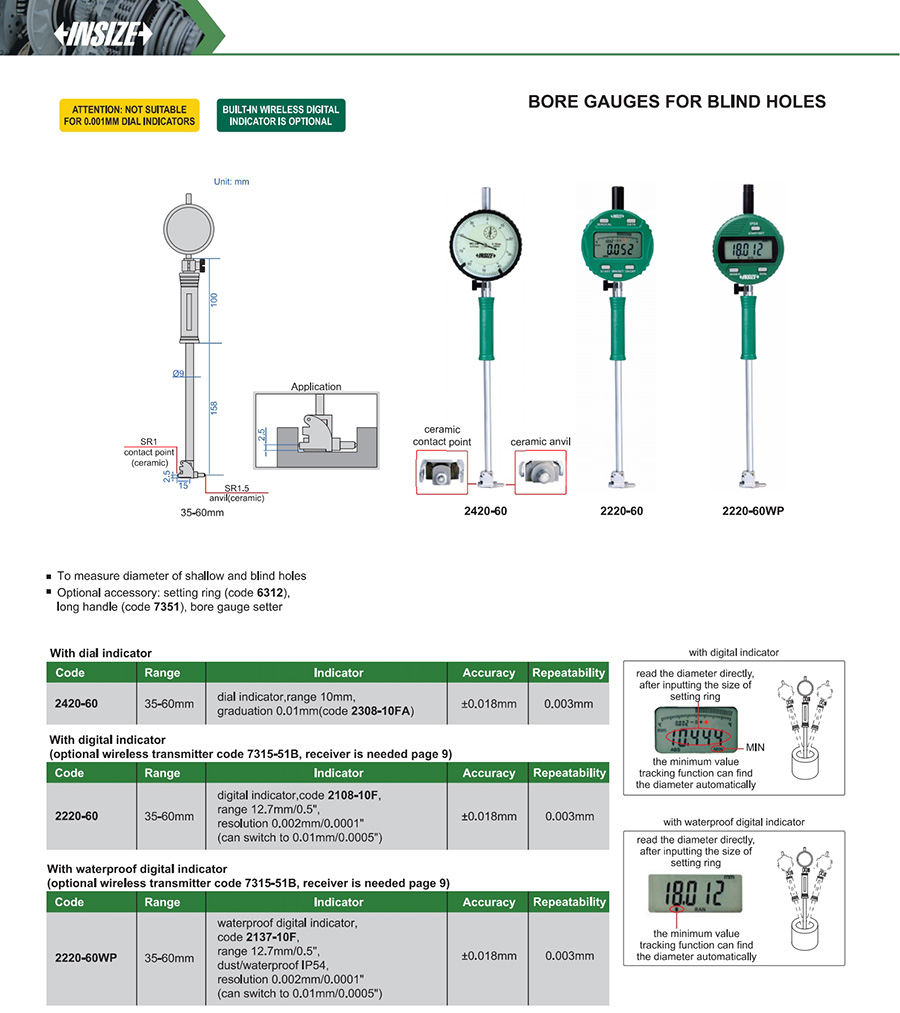

INSIZE 2420-60 Bore Gauge For Blind Holes With Dial Indicator 35-60mm. The INSIZE 2420-60 is a bore gauge for measuring the diameter of shallow and blind holes from 35-60 mm, fitted with a dial indicator (INSIZE code 2308-10FA, 10 mm range, 0.01 mm graduation). INSIZE states an accuracy of ±0.018 mm and repeatability of 0.003 mm, with a ceramic contact point and a ceramic anvil at the measuring end so it can reach the bottom of a hole that a standard bore gauge cannot. A setting ring, long handle and bore gauge setter are available as optional accessories.
₹23,242.00 inclusive of GST
Product specifications
- Display Type
- Dial
- Type of Product
- BORE GAUGE FOR BLIND HOLES (WITH DIAL INDICATOR)
- Model No
- 2420-60
- Brand
- Insize
