INSIZE Inductance Type Probe ±0.9mm 9420-AP02

Ordered from Insize for you · dispatch in 5–7 working days
₹25,583.58incl. GST

Free delivery

Dispatch in 5–7 working days

Not in our warehouse. We order it after you place your order. If Insize can't supply it, you get a full refund. Need it sooner? Check stock on WhatsApp

Shipping terms

Key facts

Brand
Insize
Model
9420-AP02
Returns
Not returnable — replacement if damaged or defective
Payment
UPI, cards or net banking, bank transfer
1
Need several units? Request a quote
  • Secure checkout
  • GST invoice
Sold byVatsa Enterprises, Agra
  • 4.3 / 5920 buyer ratings
  • TrustSEALIndiaMART verified
  • GSTRegistered business
Features
Display TypeNot applicable
Type of ProductINDUCTANCE TYPE PROBE

Specifications

BrandInsize
Display TypeNot applicable
Type of ProductINDUCTANCE TYPE PROBE
HSN code90319000
GST rate18%

Description

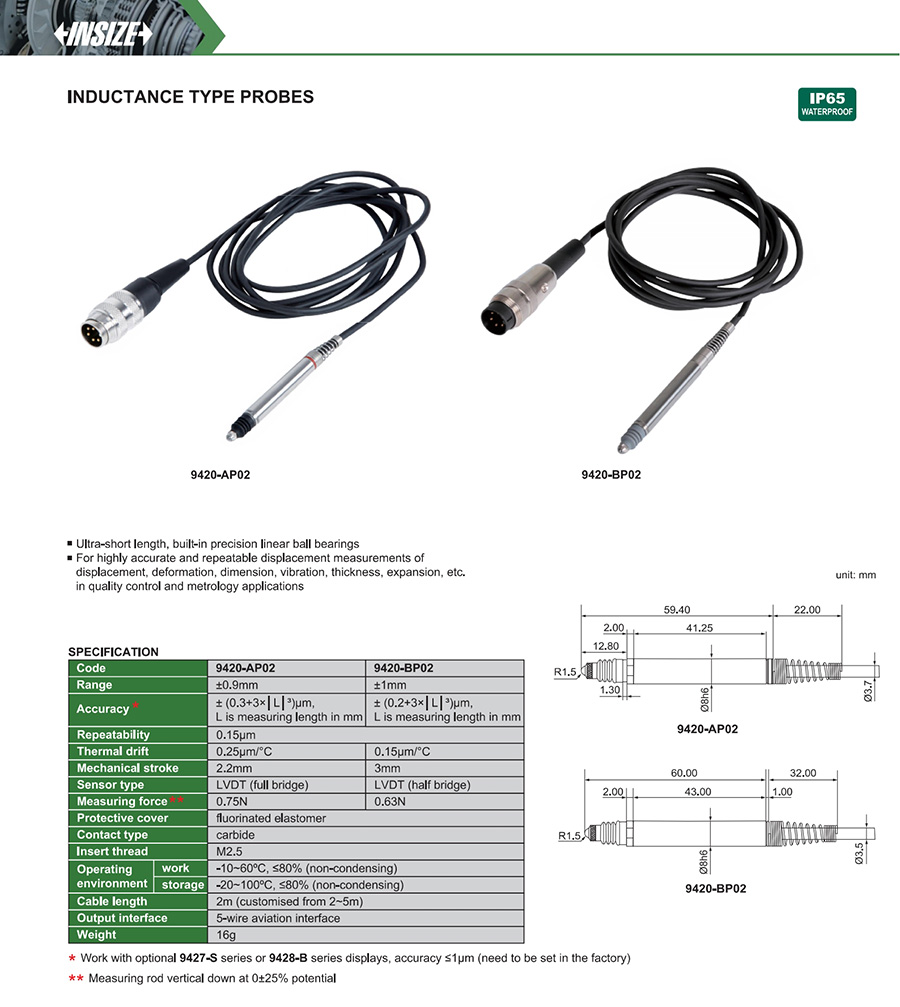

The INSIZE 9420-AP02 is an ultra-short inductance-type displacement probe with a ±0.9mm measuring range, built around a full-bridge LVDT sensor with built-in precision linear ball bearings. INSIZE states an accuracy of ±(0.3+3×|L|³)µm, where L is the measuring length in mm, a repeatability of 0.15µm, and a measuring force of 0.75N through a carbide contact tip on an M2.5 thread. Rated IP65 waterproof, it is used for displacement, deformation, thickness and vibration measurement in metrology and quality control, connecting through a 5-wire aviation plug on a 2m cable, customisable from 2-5m.
