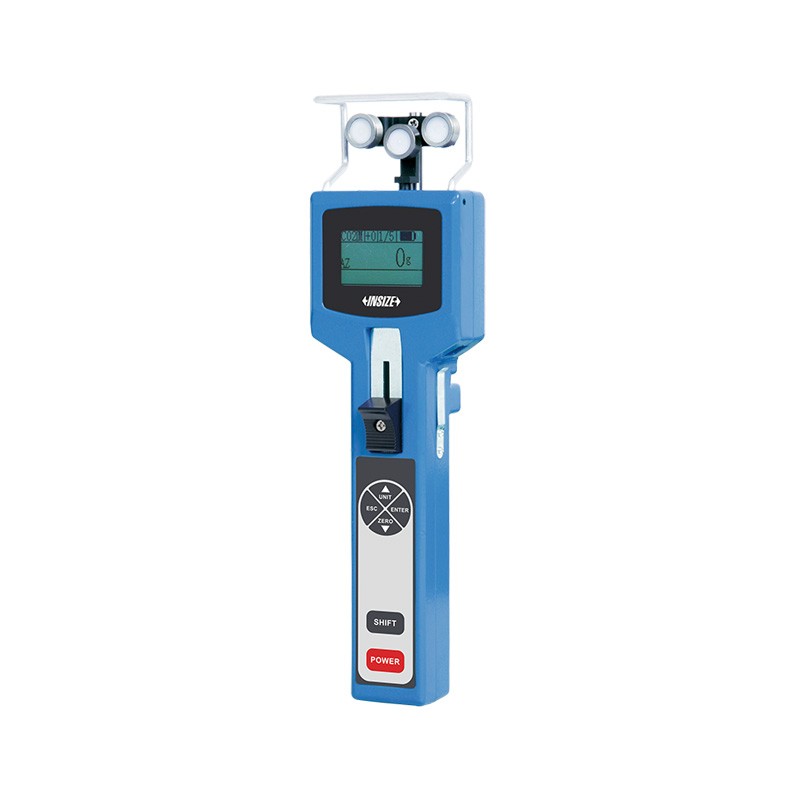

INSIZE ISF-DT1000 Wire Tension Meter, 10-1000cN
INSIZE ISF-DT1000 Wire Tension Meter, 10-1000cN. Built for wire and cable production lines, the INSIZE ISF-DT1000 wire tension meter measures the running tension on stranding, winding and wire-cutting machines, and on fibre-optic and steel-wire-rope lines. It reads 10 to 1000cN at a resolution of 1cN, accurate to ±2% of full scale. The 65mm measuring head is factory-calibrated for 0.4mm wire, with a working diameter range of 0.1 to 0.5mm. It zeroes automatically or manually, holds up to 200 readings in memory, and offers ten calibration channels across six groups so it can be tuned to different wire types.
₹2,15,972.92 inclusive of GST

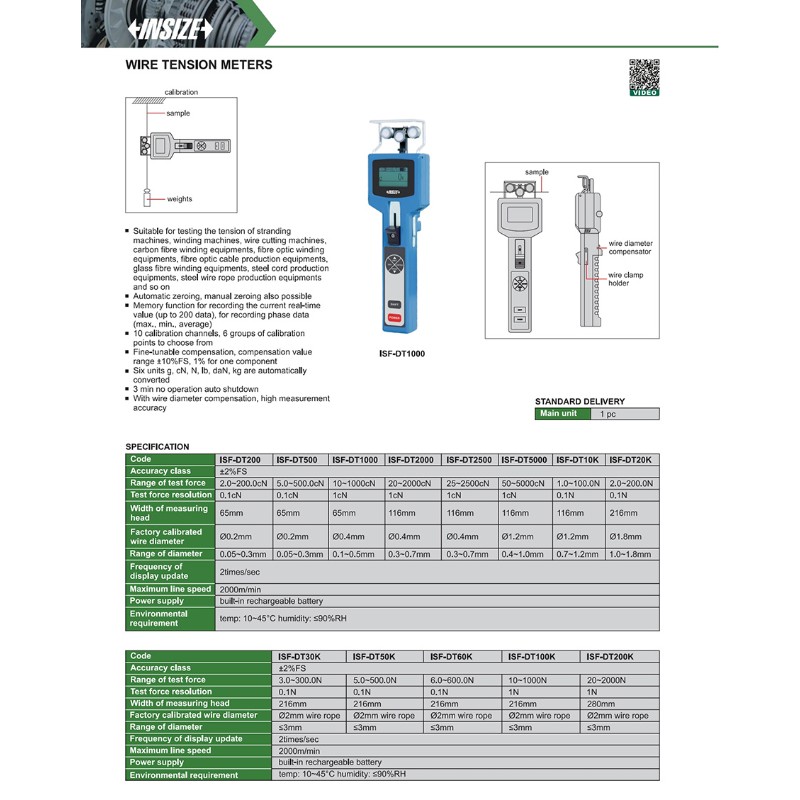

Product specifications
- Type of Product
- WIRE TENSIO METERS
- Model No
- ISF-DT1000
- Brand
- Insize
- Accuracy
- ±2%FS
- Range of test force
- 10~1000cN
