INSIZE 9410 Trigger-Type 3D Probe

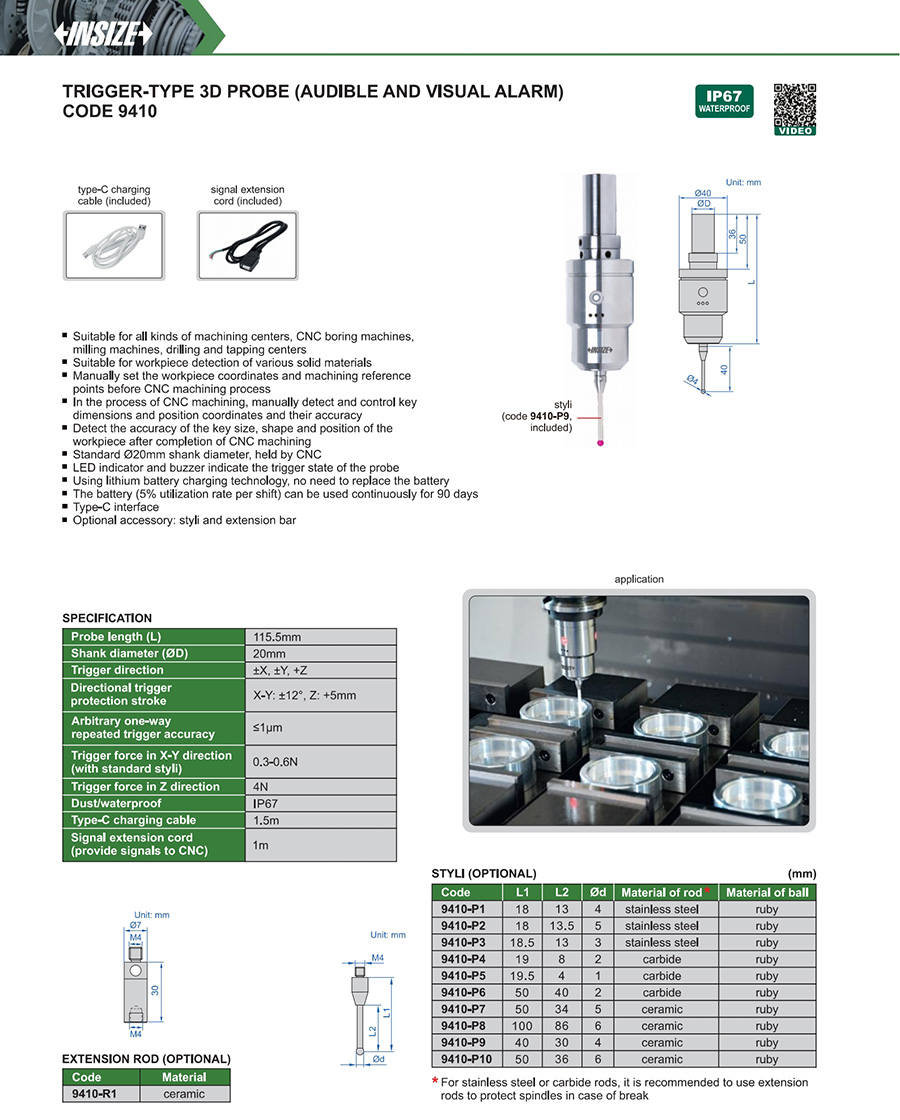

This INSIZE trigger-type 3D probe locates workpiece edges and centres on machining centres and CNC boring, milling, drilling and tapping machines, letting an operator set workpiece coordinates and reference points and check key dimensions during and after machining. INSIZE states its probe length is 115.5mm on a standard Ø20mm shank held in the machine spindle, with trigger directions of ±X, ±Y and +Z and a repeated trigger accuracy of 1 micron or better. An LED and buzzer signal the trigger state, and it charges over USB Type-C, running about 90 days per charge. It is rated IP67 dust and waterproof, with extra styli and an extension bar offered as options.
