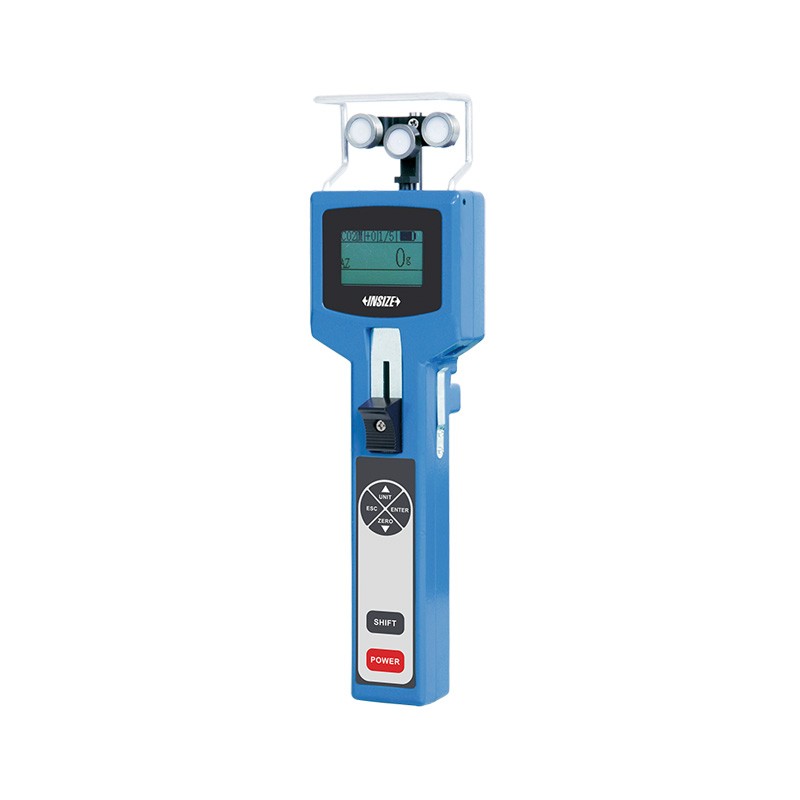

INSIZE ISF-DT200K Wire Tension Meter, 20-2000N

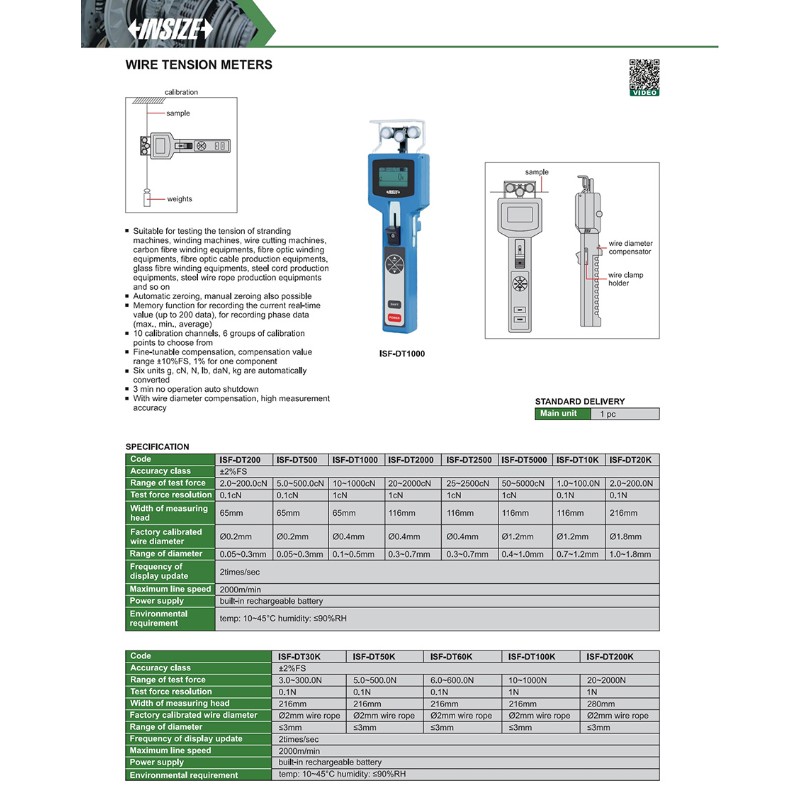

INSIZE ISF-DT200K Wire Tension Meter, 20-2000N. The INSIZE ISF-DT200K is a wire tension meter built for steel-wire-rope and steel-cord production lines, as well as stranding and winding machines, at the top of the ISF-DT range. It measures 20 to 2000N, read to a resolution of 1N at ±2% of full scale. Its measuring head is 280mm wide, factory-calibrated for 2mm wire rope and rated for rope up to 3mm in diameter. It zeroes automatically, with manual zeroing also available, and records up to 200 readings along with the phase's maximum, minimum and average values.
₹3,53,024.85 inclusive of GST
Product specifications
- Type of Product
- WIRE TENSIO METERS
- Model No
- ISF-DT200K
- Brand
- Insize
- Accuracy
- ±2%FS
- Range of test force
- 20~2000N
